DEGSON FMED-02P
- 收藏
- 对比
FMED-02P
637-FMED-02P
端子板 - 隔板块
--
大陆
立即发货

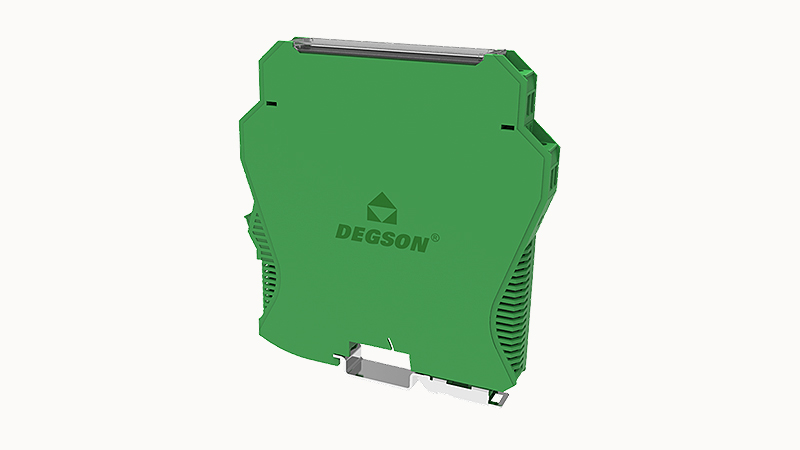

DIN rail housings, Complete housing with metal foot catch,tall design, with vents, Width: 12.7mm, Unable to compatible bus connector,color:green,material:PC,Flammability rating :V0.
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
FMED-02P详情
DEGSON FMED-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
材料
PC
Depth from top edge of DIN rail
108.5mm
Number of PCB holders
1
Installation location
Vertical (horizontal DIN rail)
PCBType of installation
Latching
Connection levels
2+3
with ventilation openings
有
Maximum connection
10（pitch 5.0mm）
Ambient temperature (assembly)
-40℃～ +70℃
Ambient temperature (operation)
-40℃～ +125℃
Ambient temperature (storage/transportation)
-40℃～ +70℃
PCB Plug
2EDGKF-5.0-02P-14-00A(H)
PCB Socket
2EDGLF-5.0-02P-14-00A(H)
The bus terminal
FBUS12.5-05P-11-00A(H)
Packing unit
20
Products weight (without packaging)
48.3
color
green
width
12.7mm
length
110mm
高度
118.5mm
PCB thickness
1.8mm
Flammability rating
V0
