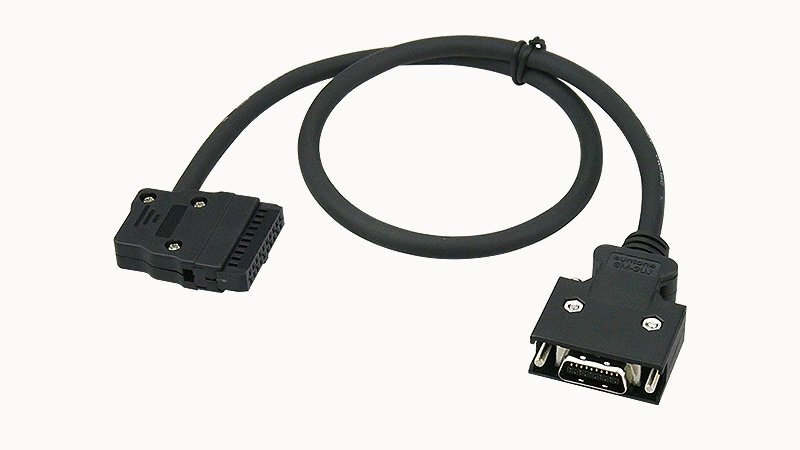

DEGSON MDR cable-DX220-3DS-500-00A(H)

Products weight (without packaging)

50

Packing unit

1

Exit angle

180°

spacing

1.27mm

Number of digits

20

Connection volume

1

Connection name

On-site side

Single strand, cross section (AWG)

28

Single strand, cross-sectional area

0.08mm²

Cable outer diameter

6.1mm

Maximum current carrying capacity of each path

0.7A

Maximum allowable working voltage

30VDC

Connection meets standards

UL758

Gasoline resistance

≤246Ω/KM

Oil resistance

Oil resistant

Flame retardant

ULVW-1

Ambient temperature (storage/transportation)

-20 °C ... 80 °C

Ambient temperature (operation)

-20 °C ... 80 °C

Outer sheath,color

black

Outer sheath, material

PVC

shield

有

Single stranded wire, material

Tinned copper

Single wire, number of twisted wires

20

cable length

0.5米

Connection method

IDC/MIL female connector
