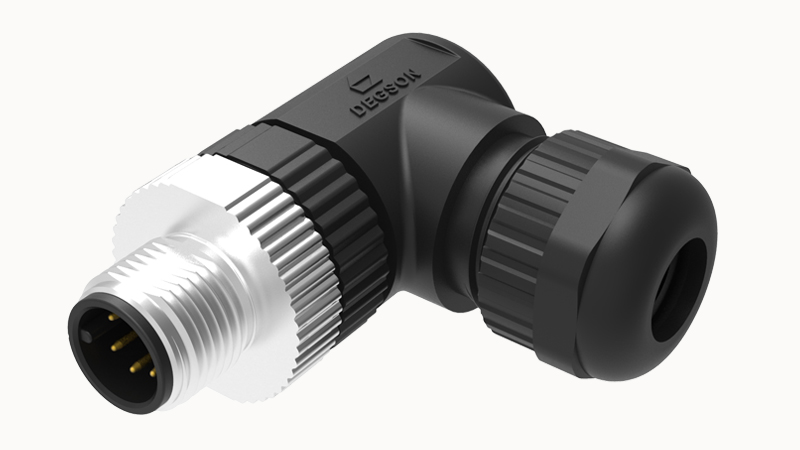

DEGSON PA-M12A-12P-MM-SR7001

Ambient temperature

-25℃...105℃

IP class

IP67

Number of potentials

12

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Assembled conductor cross section

0.14~0.25 mm²

Assembled cable outer diameter

4.0-8.0mm

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Insulation resistance

≥ 100 MΩ

Rated current

1.5A

Connection method

Soldering
