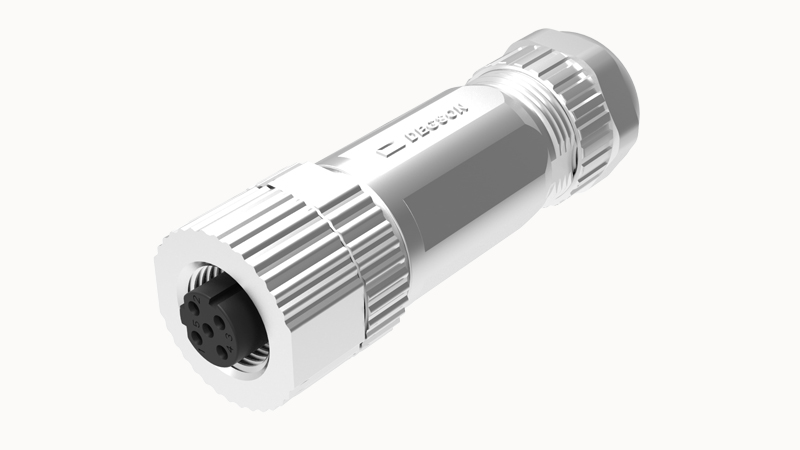

DEGSON PBSH-M12A-06P-FF-SL7001

Material of contact surface

Au

Contact carrier material

PA

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Assembled cable outer diameter

4.5-6.0mm

Assembled conductor cross section

0.25~0.34 mm²

Ambient temperature

-40℃...105℃

IP class

IP67

Number of potentials

6

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Insulation resistance

≥ 100 MΩ

Rated current

2A

Connection method

Screw connection
