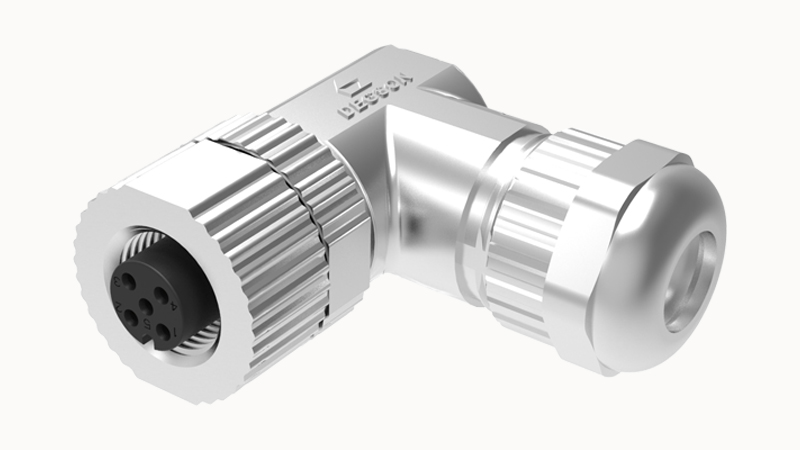

DEGSON PCSH-M12A-04P-FF-SR7002

Products weight (without packaging)

/

Packing unit

100

Sealing cap

CAP-M12-MP-8004

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

4

IP class

IP67

Ambient temperature

-25℃...105℃

Assembled conductor cross section

0.25~0.52 mm²;24~20 AWG

Assembled cable outer diameter

6.0-7.5mm

Insulation resistance

≥ 100 MΩ

Rated current

4A;250V

Connection method

Crimp
