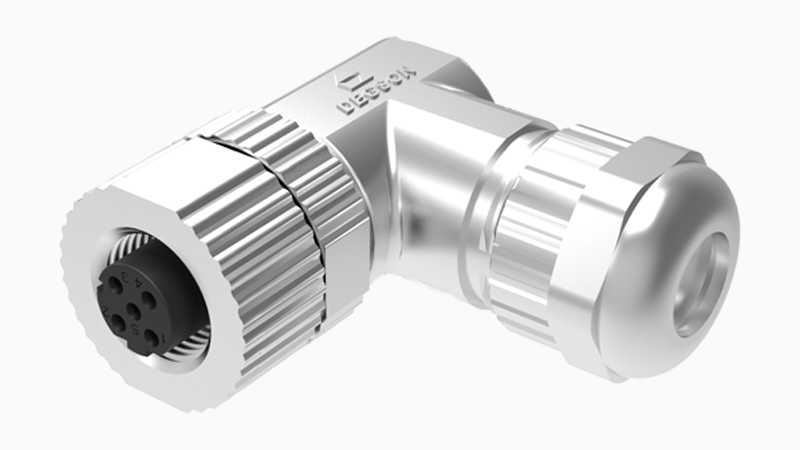

DEGSON PCSH-M12D-04P-FF-SR7002

Assembled cable outer diameter

6.0-7.5mm

Assembled conductor cross section

0.25~0.52 mm²;24~20 AWG

Ambient temperature

-25℃...105℃

IP class

IP67

Number of potentials

4

Error-proof coding

D-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Sealing cap

CAP-M12-MP-8004

Packing unit

100

Products weight (without packaging)

/

Insulation resistance

≥ 100 MΩ

Rated current

4A;250V

Connection method

Crimp
