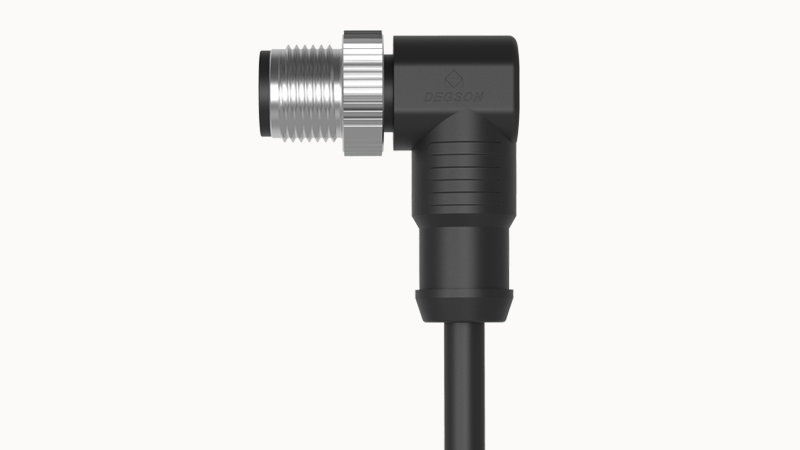

DEGSON PM-M12A-03P-MM-SR8D01

Conductor material

Tinned copper

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Number of potentials

3

IP class

IP68

Ambient temperature

-25℃...80℃

Oil resistance

无

Flame retardant

Comply with UL 758/1581 FT2 standard

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 59.4Ω/km (at 20 °C) )

Conductor insulation material

PE

Outer sheath, material

PU

Cable outer diameter D

4.7 ±0.2mm

Thickness, insulation

0.6mm

Wire color

1 Brown 3 Blue 4 Black

Core diameter (including insulation layer)

1.30±0.05mm

Wire structure Signal wire

17/0.16mm²

AWG signal wire

22AWG

Cross section

0.34mm²

UL AWM form

UL20549

Cable type(abbreviation)

PUR

Cable Types

PUR Black

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Fixture body material

TPU

Contact carrier material

PA

Insulation resistance

≥100MΩ

Cable length

1m

Rated current

4A
