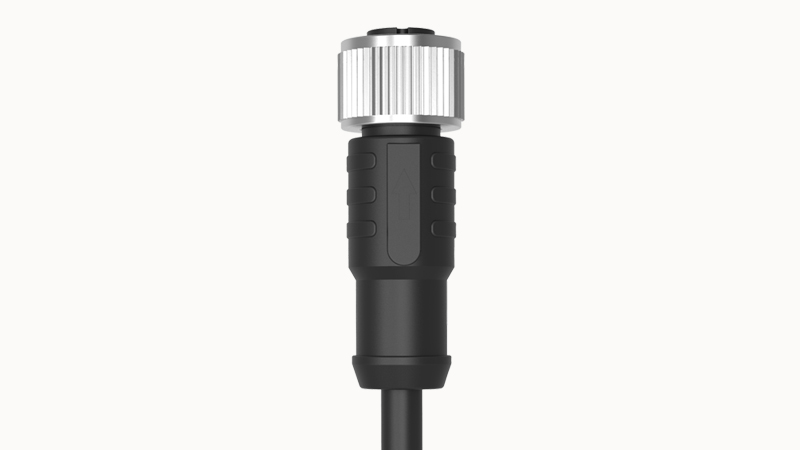

DEGSON PM-M12A-06P-FF-SL8C01

Conductor material

Tinned copper

Ambient temperature

-25℃...85℃

IP class

IP68

Number of potentials

6

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Fixture body material

TPU

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Cable Types

PVC Black

Cable type(abbreviation)

PVC

UL AWM form

UL2517

Cross section

0.25mm²

AWG signal wire

24AWG

Wire structure Signal wire

7/0.20mm²

Core diameter (including insulation layer)

1.10±0.05mm

Wire color

1 White 2 Brown 3 Green 4 Yellow 6 Pink 7 Blue

Thickness, insulation

0.6mm

Cable outer diameter D

5.2 ±0.2mm

Outer sheath, material

PVC

Conductor insulation material

PVC

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Flame retardant

Comply with UL 758/1581 FT1 standard

Insulation resistance

≥100MΩ

Cable length

1m

Halogen free

有

Rated current

2A
