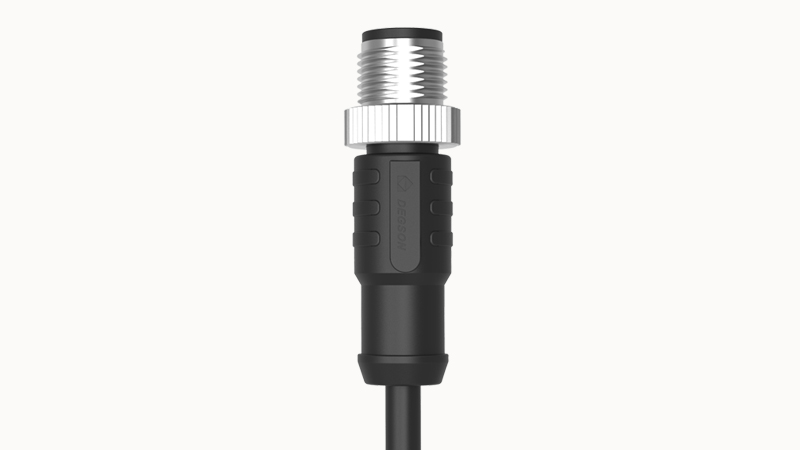

DEGSON PM-M12A-08P-MM-SL8A01

Conductor material

Tinned copper

AWG signal wire

24AWG

Cross section

0.25mm²

UL AWM form

UL2517

Cable type(abbreviation)

PVC

Cable Types

PVC Black

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Fixture body material

TPU

Contact carrier material

PU

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL97

HB

Flammability rating ,in line with UL94

V0

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

8

IP class

IP68

Ambient temperature

-25℃...85℃

Wire structure Signal wire

7/0.20mm²

Core diameter (including insulation layer)

1.10±0.05mm

Wire color

1 White 2 Brown 3 Green 4 Yellow 5 Gray 6 Pink 7 Blue 8 Red

Thickness, insulation

0.6mm

Cable outer diameter D

5.5 ±0.2mm

Outer sheath, material

PVC

Conductor insulation material

PVC

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Flame retardant

Comply with UL 758/1581 FT1 standard

Insulation resistance

≥100MΩ

Cable length

1m

Halogen free

有

Rated current

2A
