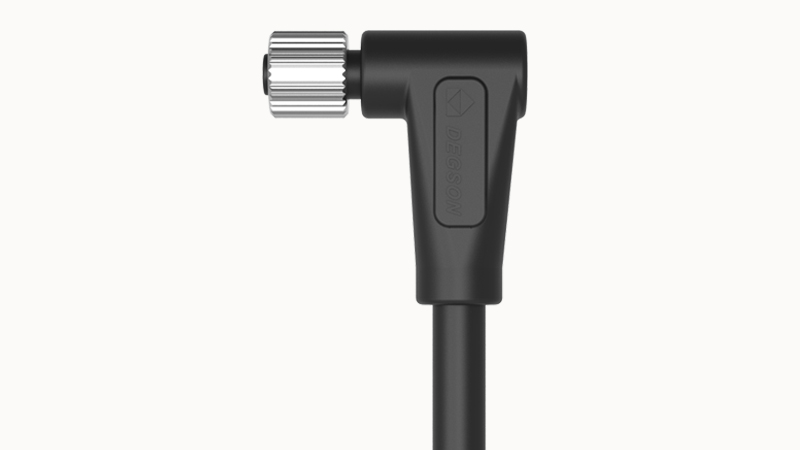

DEGSON PM-M5A-04P-FF-SR7B01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP67

Number of potentials

4

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PU

Fixture body material

TPU

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-105

Cable Types

PUR Black

Cable type(abbreviation)

PUR

UL AWM form

UL20549

Cross section

0.14mm²

AWG signal wire

26AWG

Wire structure Signal wire

19/0.10mm²

Core diameter (including insulation layer)

1.00±0.05mm

Wire color

1 Brown 2 White 3 Blue 4 Black

Thickness, insulation

0.38mm

Cable outer diameter D

3.5 ±0.2mm

Outer sheath, material

PU

Conductor insulation material

PVC

Conductor resistance

Maximum 150Ω/km (at 20 °C) )

Nominal cable voltage

300V

Flame retardant

Comply with UL 758/1581 FT2 standard

Insulation resistance

≥100MΩ

Cable length

1m

Halogen free

无

Rated current

1A
