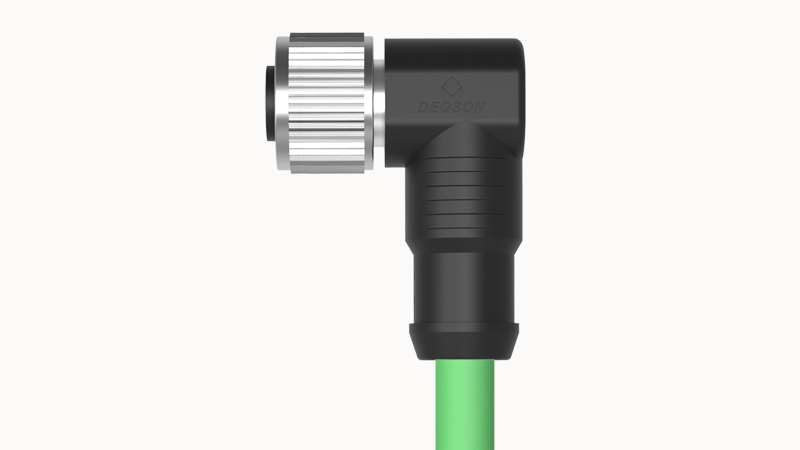

DEGSON PMSH-M12D-04P-FF-SR8E01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP68

Number of potentials

4

Error-proof coding

D-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Fixture body material

TPU

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Cable Types

CAT5E Green

Cable type(abbreviation)

PVC

Cross section

0.34mm²

AWG signal wire

22AWG

Wire structure Signal wire

7/0.254mm²

Core diameter (including insulation layer)

1.55±0.05mm

Wire color

1.Yellow 2.White 3.Orange 4.Blue knitting

Thickness, insulation

0.6mm

Cable outer diameter D

6.5 ±0.3mm

Outer sheath, material

PVC

Conductor insulation material

PE

Conductor resistance

Maximum 59.4Ω/km (at 20 °C) )

Cable test voltage

1500V

Flame retardant

Compliant with 1581 standard

Insulation resistance

≥ 100 MΩ

Cable length

1m

Halogen free

有

Rated current

4A
