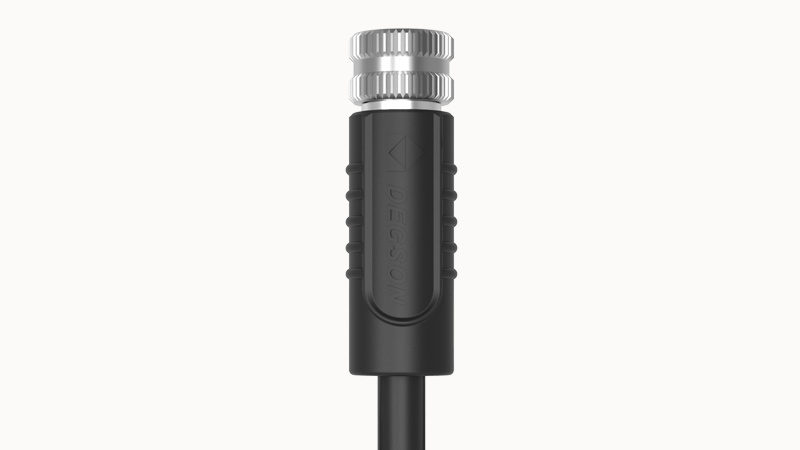

DEGSON PMSH-M8A-04P-FF-SL7D01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP67

Number of potentials

4

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Fixture body material

TPU

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-104

Cable Types

PUR Black

Cable type(abbreviation)

PUR

UL AWM form

UL20549

Cross section

0.25mm²

AWG signal wire

24AWG

Wire structure Signal wire

7/0.20mm²

Core diameter (including insulation layer)

1.00±0.05mm

Wire color

1 Brown 2 White 3 Blue 4 Black knitting

Thickness, insulation

0.23mm

Cable outer diameter D

5.2 ±0.2mm

Minimum bend radius ,fixed installation

5*OD

Minimum bend radius ,mobile installation

10*OD

Bending radius

50.8mm

Outer sheath, material

PU

Conductor insulation material

PVC

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Special attributes

Silicone-free

Other protection functions

Anti-UV

Insulation resistance

≥ 20 MΩ

Cable length

1m

Halogen free

无

Rated current

3A
