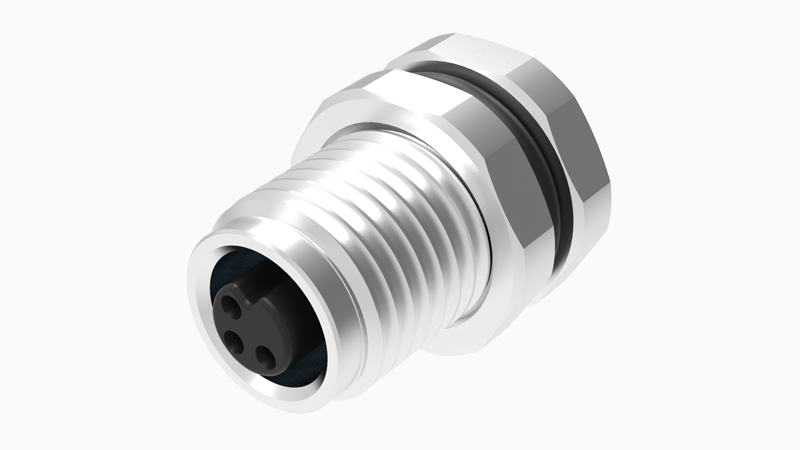

DEGSON SD-M5A-04P-FF-SF7B50

Conductor material

Tinned copper

Ambient temperature

-40℃...85℃

IP class

IP67

Number of potentials

4

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.3 Nm ... 0.4 Nm

Type of installation

Rear board installation

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-105

UL AWM form

UL1061

Cross section

0.14mm²

AWG signal wire

26AWG

Wire structure Signal wire

7/0.16mm²

Core diameter (including insulation layer)

1.00±0.05mm

Wire color

1 Brown 2 White 3 Blue 4 Black

Thickness, insulation

0.23mm

Conductor insulation material

PVC

Conductor resistance

Maximum 150Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Insulation resistance

≥100MΩ

Cable length

0.5m

Rated current

1A

Connection method

Single wire
