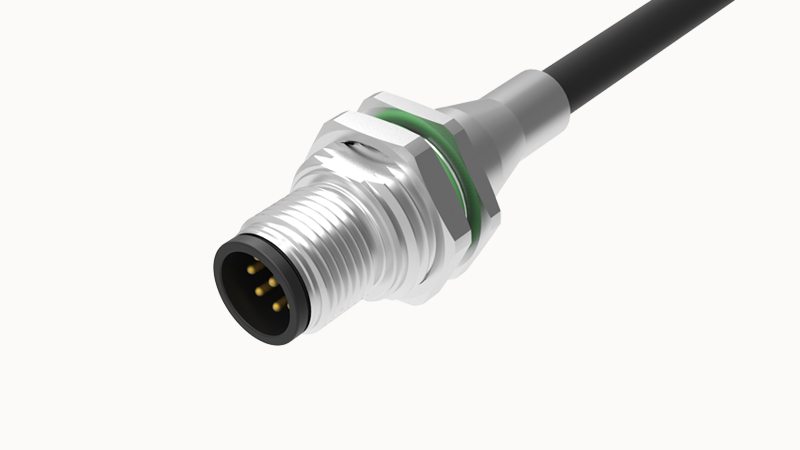

DEGSON SESH-M12A-08P-MM-SM8A01

Conductor material

Tinned copper

Ambient temperature

-40℃...80℃

IP class

IP68

Number of potentials

8

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Type of installation

Rear board installation

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Cable Types

PVC Black

Products weight (without packaging)

/

Packing unit

100

Sealing cap

CAP-M12-FP-8002

Flame retardant

Comply with UL 758/1581 FT1 standard

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 59.4Ω/km (at 20 °C) )

Conductor insulation material

PVC

Outer sheath, material

PVC

Cable outer diameter D

5.0 ±0.2mm

Thickness, insulation

0.6mm

Wire color

1 White 2 Brown 3 Green 4 Yellow 5 Gray 6 Pink 7 Blue 8 Red

Core diameter (including insulation layer)

1.30±0.05mm

Wire structure Signal wire

17/0.16mm²

AWG signal wire

24AWG

Cross section

0.25mm²

UL AWM form

UL2517

Cable type(abbreviation)

PVC

Insulation resistance

≥ 100 MΩ

Halogen free

有

Rated current

2A;30V
