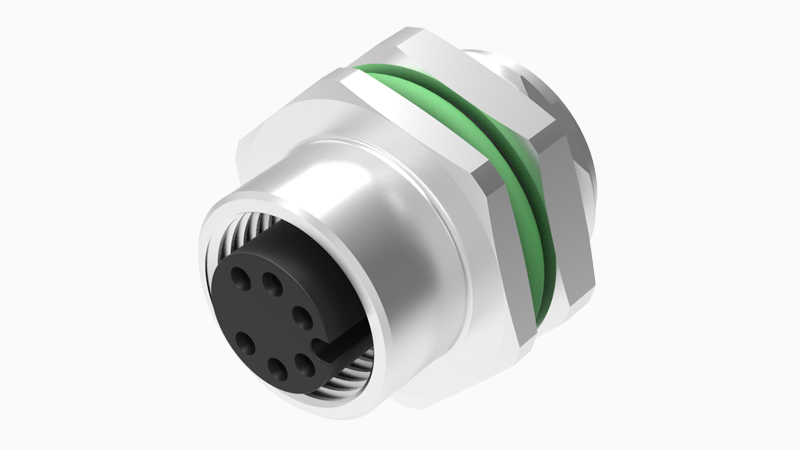

DEGSON SP-M12A-10P-FF-SH8002

Ambient temperature

-40℃...105℃

IP class

IP68

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Type of installation

Installation in front of the board

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

10

Insulation resistance

≥ 100 MΩ

Rated current

1.5A

Connection method

Soldering pin
