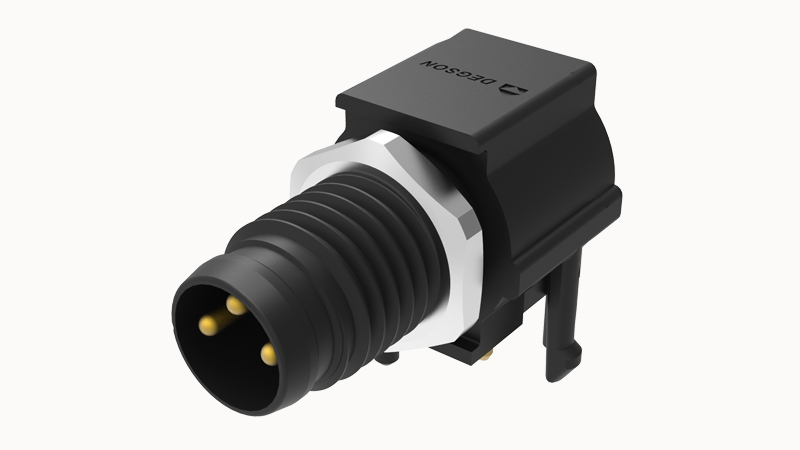

DEGSON SR-M8A-03P-MM-SF7005

Ambient temperature

-40℃...105℃

Standards/specifications

IEC 61076-2-104

Sealing material

Silicon

Coil material

Copper alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Type of installation

Rear board installation

Torque

0.3 Nm ... 0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

3

IP class

IP67

Insulation resistance

≥ 100 MΩ

Rated current

3A

Connection method

Soldering pin
