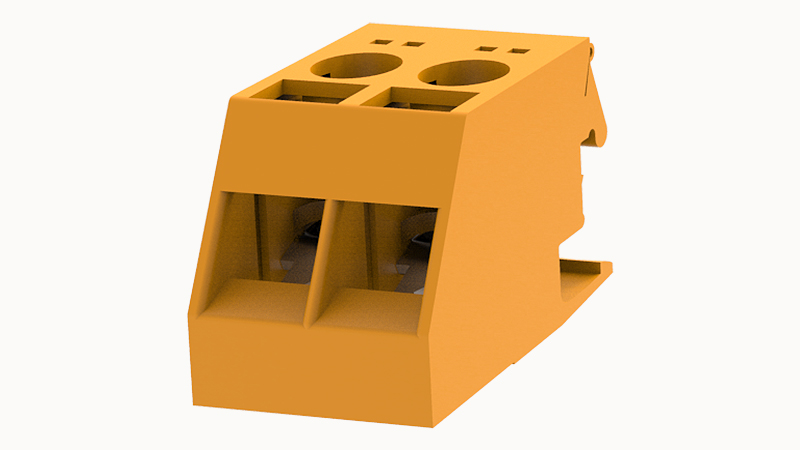

DEGSON TS2.5-02P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

24~14AWG

Torque

0.5N.m

Strip length

9mm

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated current (B)

10A

Rated current (C)

10A

Rated voltage(III/2)

800V

Type of installation

panel

Screwdriver

slotted-phillips screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

TSZB4

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

600

Products weight (without packaging)

5.83

Number of rows

1

螺距

7.5mm

Rated current

Rated current;24A

screw thread

M3

Connection method

Screw connection

Flammability rating

UL94V-0
