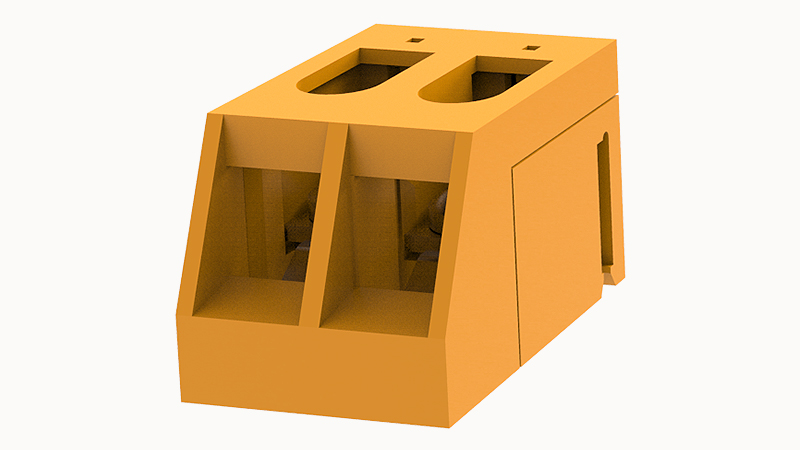

DEGSON TSB2.5-02P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

20~12AWG

Torque

0.8N.m

Strip length

9mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

20A

Rated current (D)

5A

Rated current (C)

20A

Rated voltage(III/2)

250V

Rated surge voltage(III/2)

2KV

Type of installation

panel

Screwdriver

slotted-phillips screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

TZB4

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

450

Products weight (without packaging)

8.72

Number of rows

1

螺距

9.5mm

Rated current

Rated current;24A

screw thread

M3.5

Connection method

Screw connection

Flammability rating

UL94V-0
