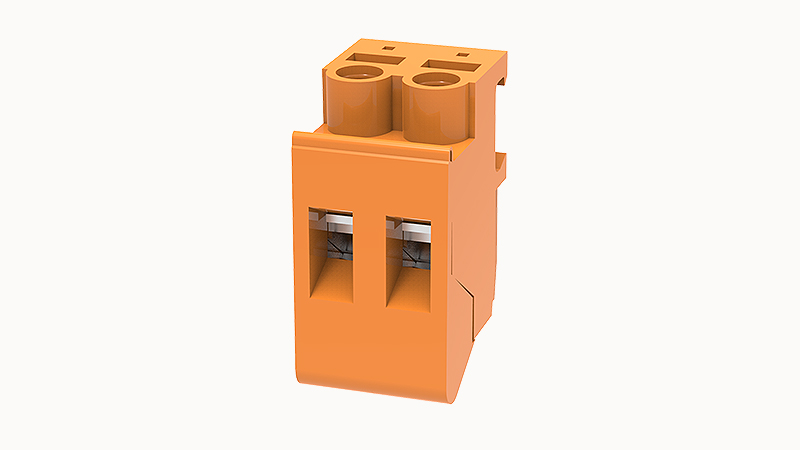

DEGSON TSC4-02P

Conductor cross section solid

0.5~4mm²

Conductor cross section flexible

0.5~4.0mm²

AWG

20~10AWG

Torque

0.8N.m

Strip length

11mm

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated current (B)

20A

Rated current (C)

20A

Rated voltage(III/2)

750V

Rated surge voltage(III/2)

2KV

Type of installation

panel

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

TZB4

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

595

Products weight (without packaging)

8.4

Number of rows

1

螺距

7.5mm

Rated current

Rated current;32A

screw thread

M3.5

Connection method

Screw connection

Flammability rating

UL94V-0
