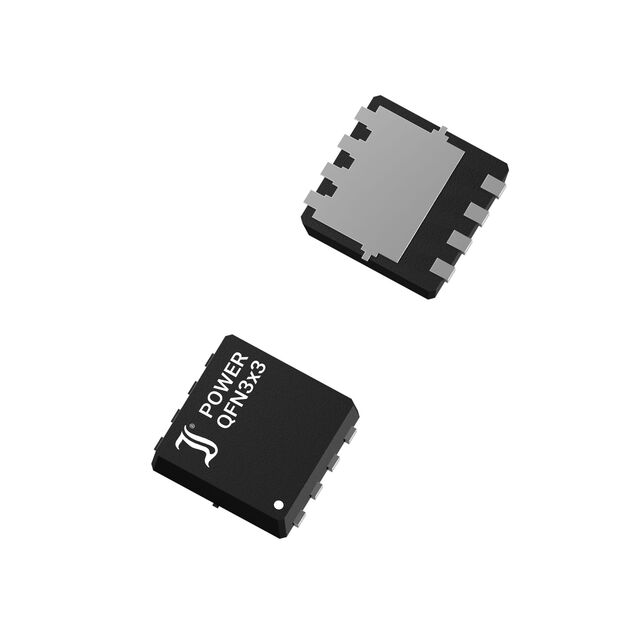

Diotec Semiconductor DI028P03PT

安装类型

表面贴装

包装/外壳

8-PowerVDFN

供应商器件包装

8-QFN (3x3)

厂商

Diotec Semiconductor

Current - Continuous Drain (Id) @ 25℃

28A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

2.5V @ 250μA

Power Dissipation (Max)

40W (Tc)

包装

Bulk

操作温度

-55°C ~ 150°C (TJ)

零件状态

活跃

场效应管类型

P-Channel

Rds On(Max)@Id,Vgs

9mOhm @ 20A, 10V

输入电容(Ciss)(Max)@Vds

2060 pF @ 15 V

门极电荷(Qg)(最大)@Vgs

30 nC @ 10 V

漏源电压 (Vdss)

30 V

Vgs（最大值）

±20V
