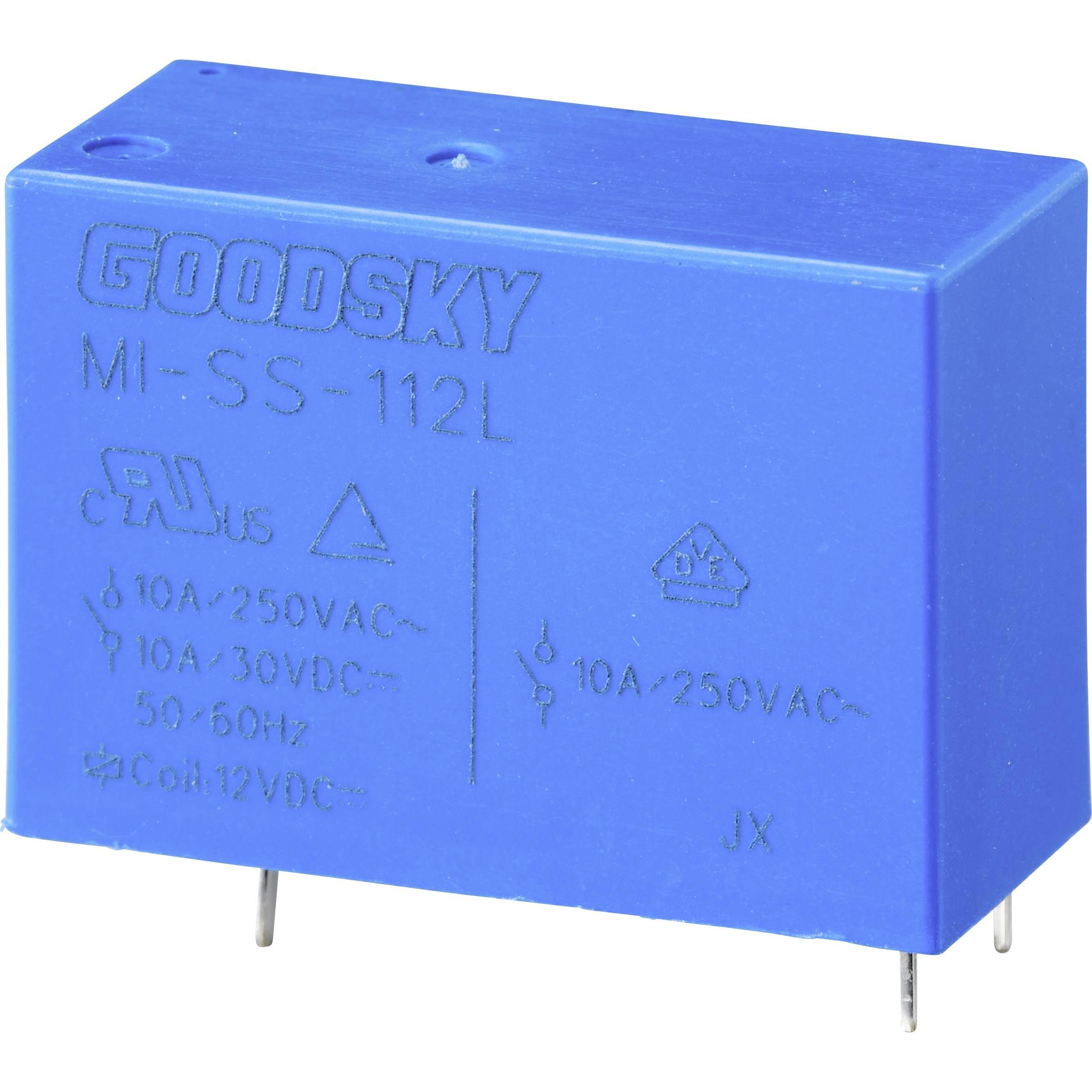

GOODSKY MI-SS-112L

质量

12.2g

Packaging type

Tube

Coil nominal voltage

12V DC

Min. pick-up voltage

0.6V DC

Max. pick-up voltage

9.6V DC

Resistance (coil)

270Ω

Coil voltage rating

0.54W

Contact Materials

Ag-alloy

Switching voltage (max.)

110V DC

Switching current (max.)

10A

Max. switching capacity

300W

Connections

Solder pins

Fall time

8ms

Min. temperature

-30°C

Max. temperature

70°C

Factory colour

Blue

Dim

(L x W x H) 29.1 x 13 x 20.6 mm

Content

1pc(s)

类型

MI-SS-112L

Contact type

1 change-over

Response time

20ms

Control mode

monostable, 1 coil

长度

29.1mm

宽度

13mm

高度

20.6mm
