Lapp 0023397-100

Cable Types

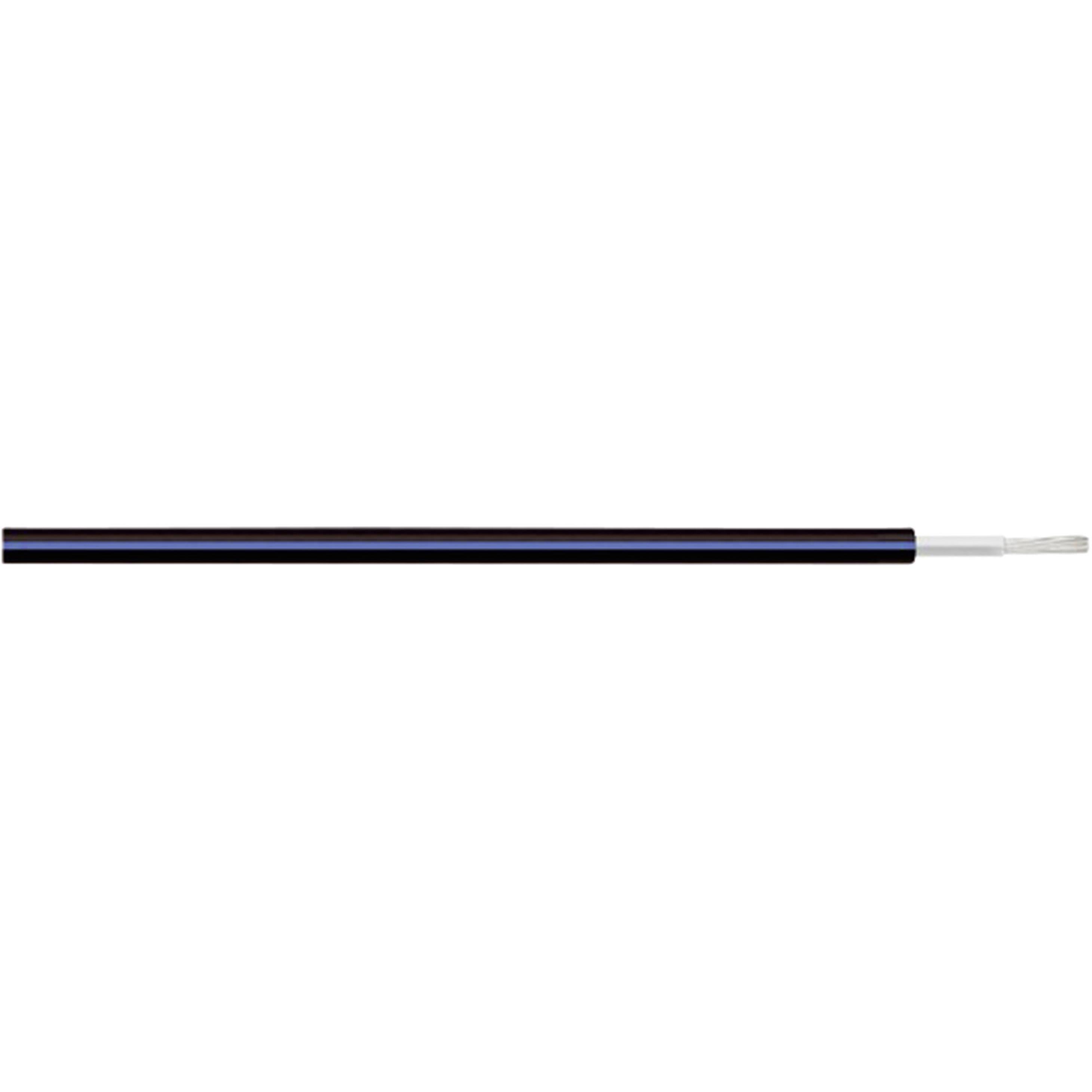

ÖLFLEX® SOLAR XLR-R

No. of leads

1x

Cross section (each core)

6mm²

Cross section

1 x 6 mm²

Cable features

Halogen-free,Flame-retardant,UV-resistant

Outside Ø

5.80mm

Factory colour

Black,Blue

Content

100m

Nominal voltage

1000V

Nominal voltage U0

600V

Insulation Materials

Copolymer

Bend radius (no. of ODs for fixed installation)

4

Package

有

Sold per metre

无

Halogen-free

有

Manufacturer part #

0023397-100

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Cl.5

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+90°C

类型

ÖLFLEX SOLAR XLS-R 1X6 WH/BK-BU

屏蔽的

无

标准

Tüv type approval (2 PfG 1169/08.07) · Halogen-free according to EN 50267-2-1/-2 · Ozone-resistant according to EN 50396 · Weather-resistant, UV-resistant according to HD 605/A1 · Acids and alkali-resistant according to EN 60811-2-1.
