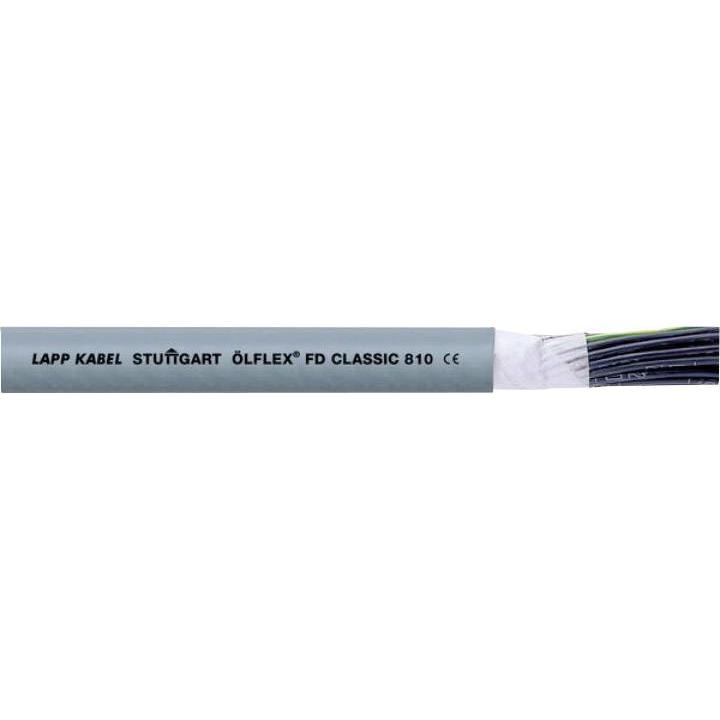

Lapp 0026154/500

Cable Types

ÖLFLEX® FD CLASSIC 810

No. of leads

12G

Cross section (each core)

1.50mm²

Cross section

12 G 1.50 mm²

Cable features

Suitable for drag chains,Flame-retardant,Suitable for drag chains

Outside Ø

12.90mm

Factory colour

Grey

Content

500m

Nominal voltage

500V

Nominal voltage U0

300V

Bend radius (no. of ODs for fixed installation)

4

Bend radius (no. of ODs for flexible installation)

7.5

Package

有

Certification marks

{DIN} VDE compliant, conductors to VDE 0245/0281 sheath to VDE 0245/0281.

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

0°C

Core layout

Extra-fine strands according to VDE 0295, Class 6/IEC 60228 CI.6

Wire ID code

Black wires with white number printing (VDE 0293)

Insulation Materials

PVC

Manufacturer part #

0026154/500

Halogen-free

无

Sold per metre

无

类型

0026154/500

屏蔽的

无
