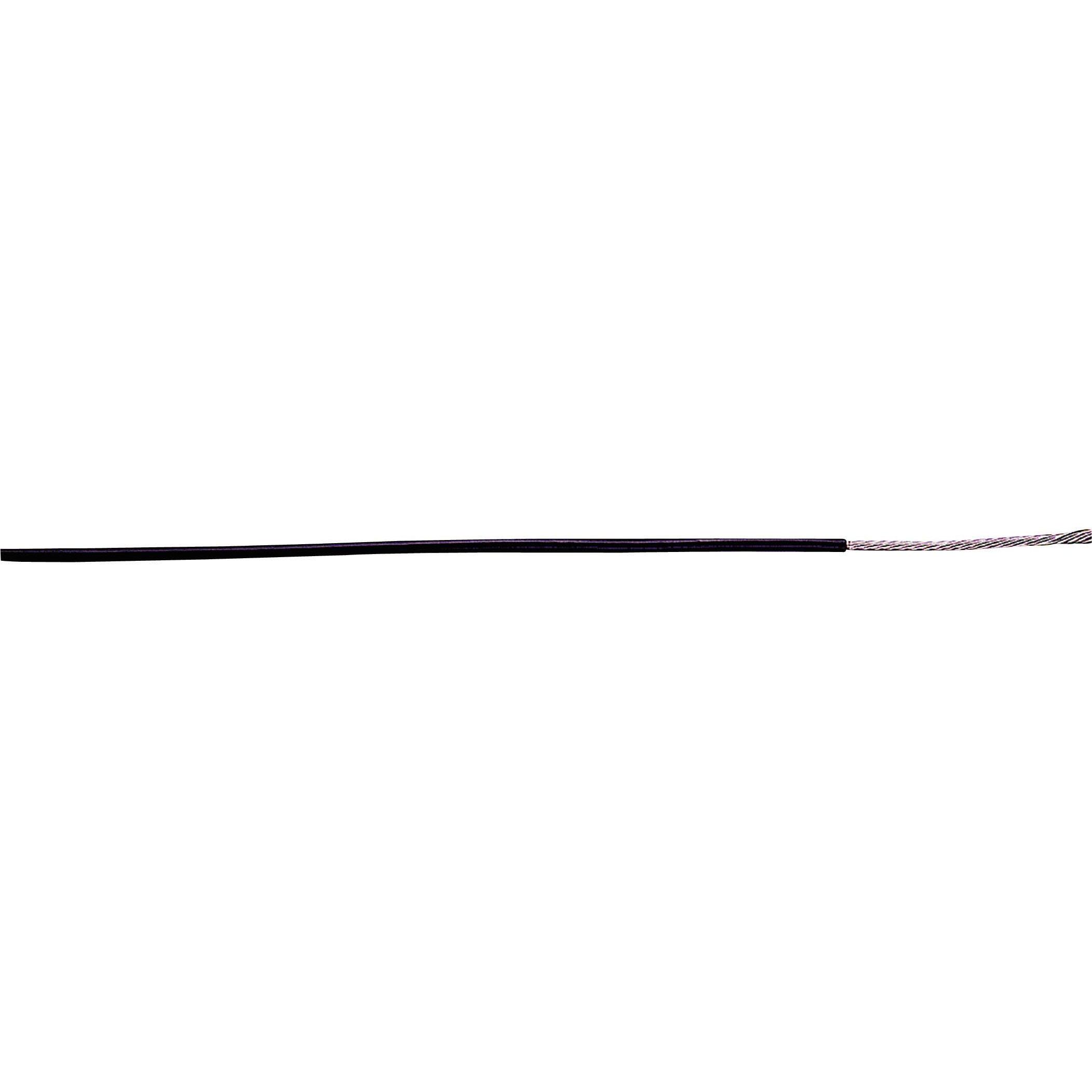

Lapp 0104002

导体材料

Copper, Silver Coated

护套（绝缘）材料

Polytetrafluoroethylene (PTFE)

Nominal voltage

500V

Cable Types

ÖLFLEX® HEAT 260 SC

Content

每米售价

Cross section

1 x 0.85 mm²

Factory colour

Blue

Cross section (each core)

0.85mm²

Halogen-free

无

Insulation Materials

Polytetrafluoroethylene (PTFE)

Cable features

Heat-resistant,Oil-resistant,Acid-resistant

Manufacturer part #

0104002

AWG max.

18

Outside Ø

1.74mm

Max. length sold by the metre

100m

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+260°C

Min. temperature range (fixed installation)

-190°C

No. of leads

1x

Package

无

Core layout

Silver-plated copper wires

Nominal voltage (details)

300/500V

RoHS-compliant

有

Sold per metre

有

厂商

LAPP

Product Status

活跃

Conductor surface

Silver-plated

Halogen free according to IEC 60754-2

无

Low smoke according to IEC 61034-2

无

操作温度

-190°C ~ 200°C

系列

ÖLFLEX®

类型

ÖLFLEX® HEAT 260 SC

线规

18 AWG

电压

-

夹克颜色

Blue

导体股数

-

护套（绝缘）直径

0.069 (1.75mm)

Temperature range

firmly laid: -190 - +260 °C, short term: +300°C

Bend radius

Minimum bend radius for flexible application: 10 x external dia. when laid fixed: 4 x external dia.

Test voltage

3400V

特征

-

长度

-

护套（绝缘）厚度

-

评级结果

-
