Lapp 1020043/100

Bend radius (no. of ODs for flexible installation)

15

Bend radius (no. of ODs for fixed installation)

6

Cable Types

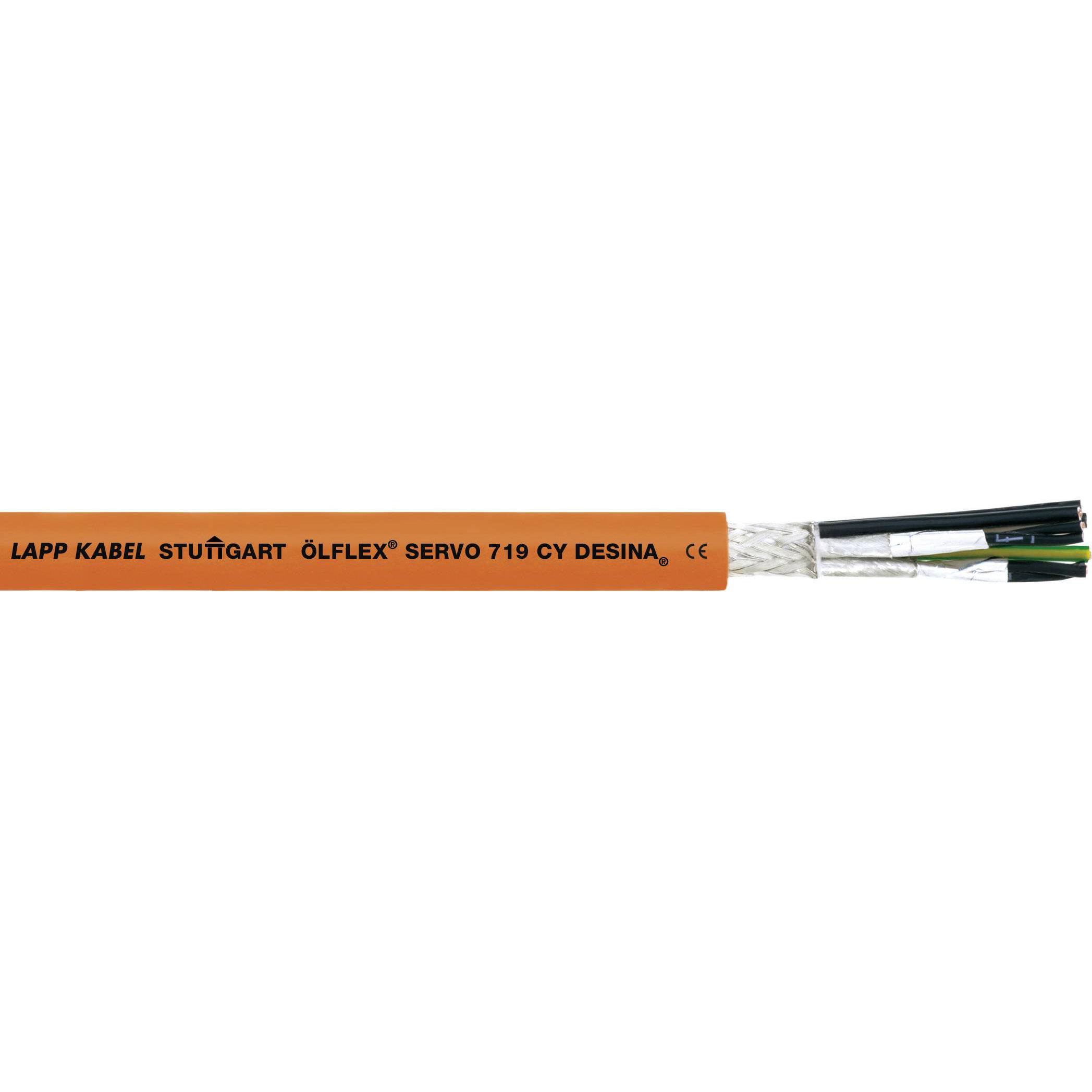

ÖLFLEX® SERVO 719 CY

Content

100m

Cross section

4 G 2.50 mm² + 2 x 0.50 mm²

Factory colour

Orange

Cross section (each core)

2.50mm²

Cross section (each core) (part 2)

0.50mm²

Halogen-free

无

Insulation Materials

PVC

Cable features

Shielded,Flame-retardant,Oil-resistant

Manufacturer part #

1020043/100

Nominal voltage

1000V

Outside Ø

11.70mm

Nominal voltage U0

600V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-5°C

No. of leads

4G

No. of leads (part 2)

2x

Package

有

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Sold per metre

无

类型

1020043/100

Test voltage

4000V
