Lapp 1024407/500

Cable Types

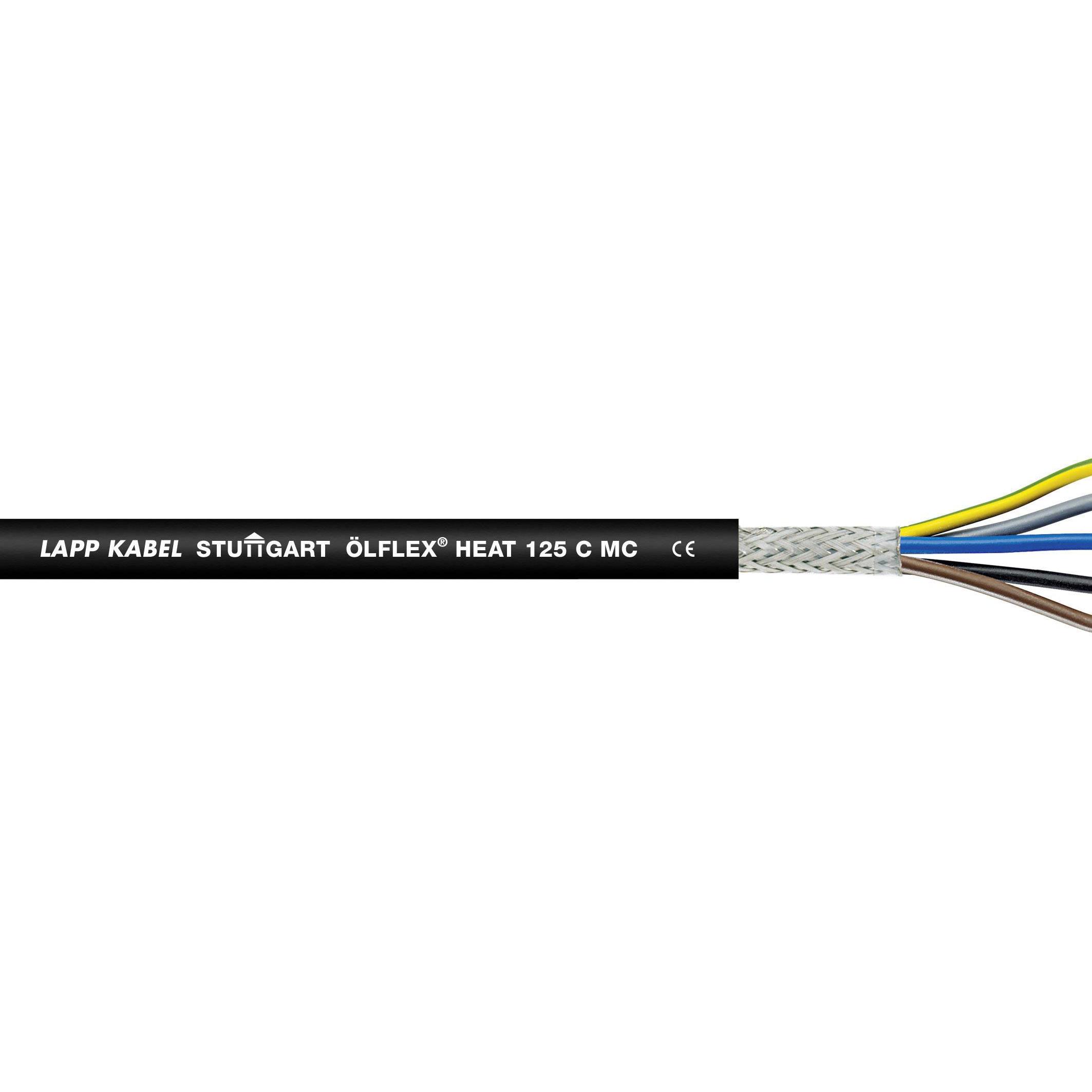

ÖLFLEX® HEAT 125 C MC

Content

500m

Cross section

2 x 0.75 mm²

Factory colour

Black

Cross section (each core)

0.75mm²

Halogen-free

有

Insulation Materials

Polyolefin

Cable features

Braided shield,Flame-retardant,Oil-resistant,Halogen-free

Manufacturer part #

1024407/500

Nominal voltage

500V

Outside Ø

7.20mm

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+125°C

Min. temperature range (fixed installation)

-55°C

Max. temperature range (flexible installation)

+120°C

Min. temperature range (flexible installation)

-35°C

No. of leads

2x

Package

有

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228

Wire ID code

Color coded according to VDE 0293-308

Sold per metre

无

类型

ÖLFLEX HEAT 125 C MC 2X0.75
