Lapp 1027703

Cable Types

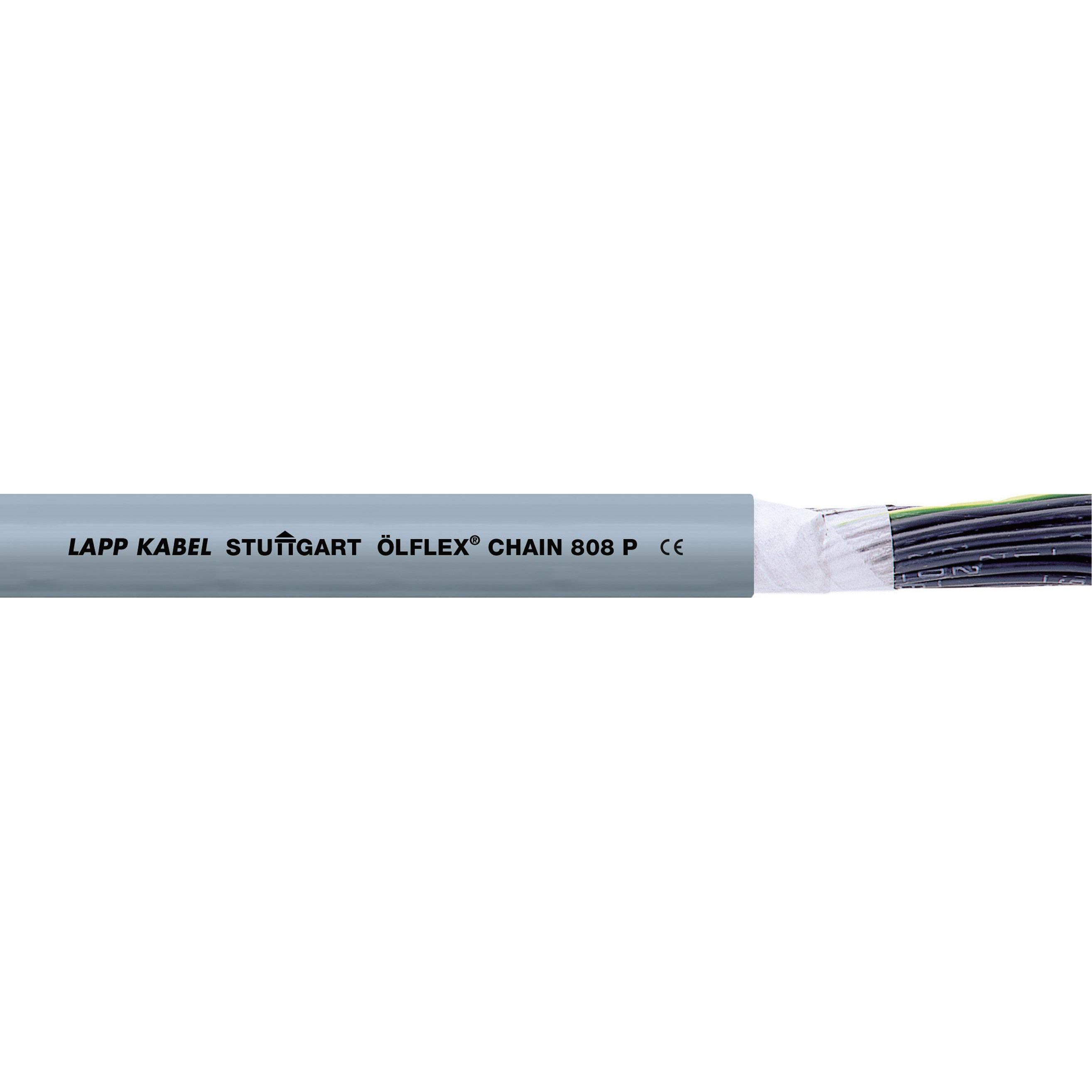

ÖLFLEX® CHAIN 808 P

No. of leads

5G

Cross section (each core)

0.50mm²

Cross section

5 G 0.50 mm²

Cable features

Oil-resistant,Suitable for drag chains

Outside Ø

6.50mm

Factory colour

Grey

Content

每米售价

Nominal voltage

500V

Nominal voltage U0

300V

Bend radius (no. of ODs for fixed installation)

4

Bend radius (no. of ODs for flexible installation)

10

Package

无

Sold per metre

有

Halogen-free

无

Manufacturer part #

1027703

Insulation Materials

Polyurethane

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

RoHS-compliant

有

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+80°C

Max. length sold by the metre

500m

Certification marks

In accordance with: HD 22.10 (VDE 0282 part 10)

类型

ÖLFLEX® CHAIN 808 CP

绝缘材料

Wire: PVC · Outer cover: PUR

屏蔽的

无

Test voltage

Wire/Wire: 4000V
