Lapp 1120464-50

Bend radius (no. of ODs for flexible installation)

15

Bend radius (no. of ODs for fixed installation)

4

Cable Types

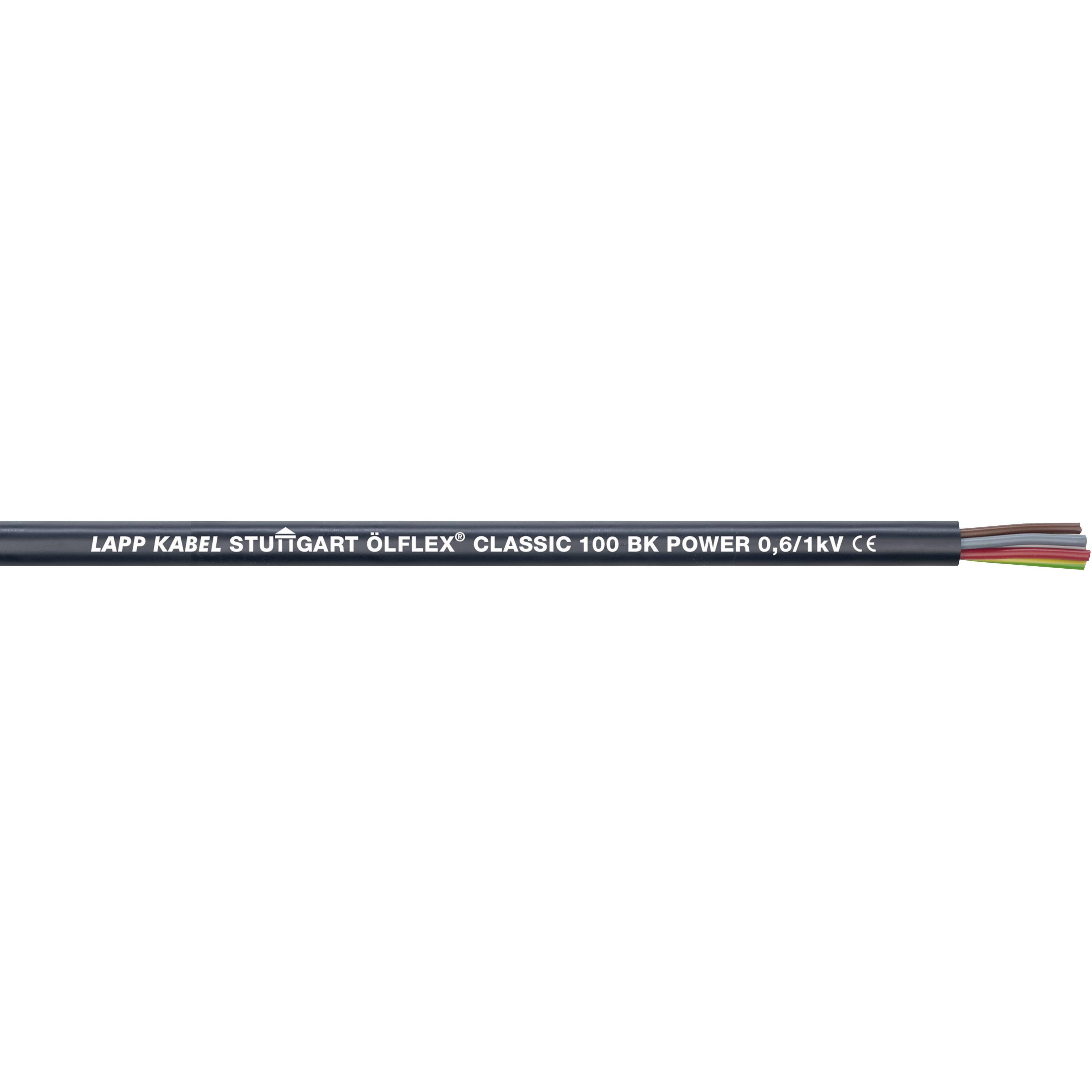

ÖLFLEX® CLASSIC 100 BK POWER

Content

50m

Cross section

4 G 1.50 mm²

Factory colour

Black

Cross section (each core)

1.50mm²

Halogen-free

无

Insulation Materials

PVC

Cable features

for underground installation,Cold-resistant,High flexural strength,UV-resistant

Manufacturer part #

1120464-50

Material (details)

PVC

Nominal voltage

1000V

Outside Ø

10.80mm

Nominal voltage U0

600V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-30°C

No. of leads

4G

Package

有

Core layout

Cu, bare copper, fine strands

Wire ID code

Up to 5 wires: according to VDE 0293-308 · From 6 wires ÖLFLEX ® color code

Sold per metre

无

类型

ÖLFLEX CLASSIC 100 BK 0,6/1 KV 4G1,5

绝缘材料

PVC

Test voltage

4000V
