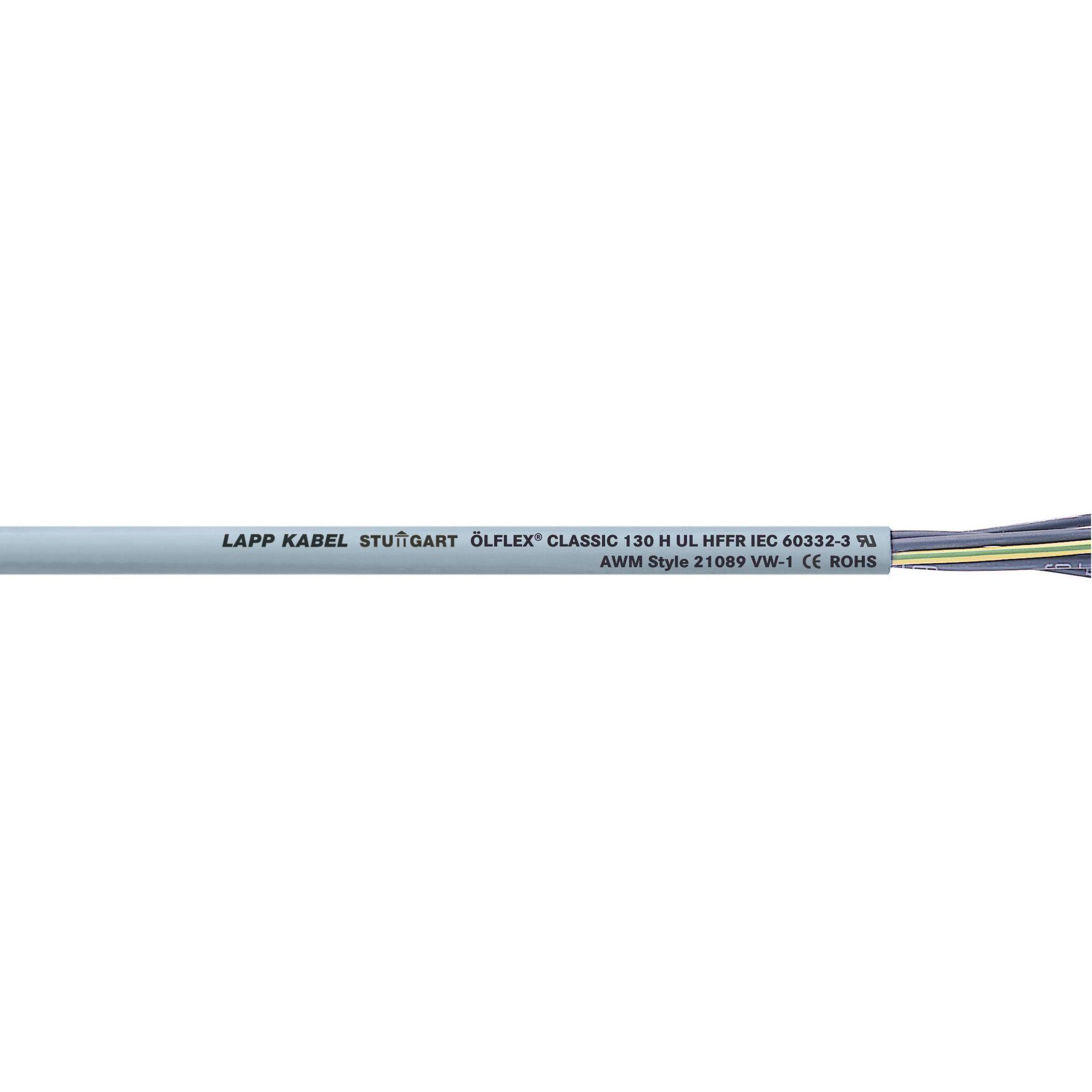

Lapp 1123067/100

Bend radius (no. of ODs for flexible installation)

15

Cable Types

ÖLFLEX® CLASSIC 130 H

Content

100m

Cross section

3 G 1 mm²

Factory colour

Grey

Cross section (each core)

1mm²

Cable features

Halogen-free,Flexible,Flame-retardant

Manufacturer part #

1123067/100

Nominal voltage

500V

Outside Ø

6.10mm

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-15°C

No. of leads

3G

Package

有

Core layout

Fine-stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Certification marks

In accordance with VDE 0281 Part 14

Wire ID code

Black wires with white number printing (VDE 0293)

Sold per metre

无

类型

1123067/100

Test voltage

Wire/wire: 4000 V, Wire/shield: 2000V
