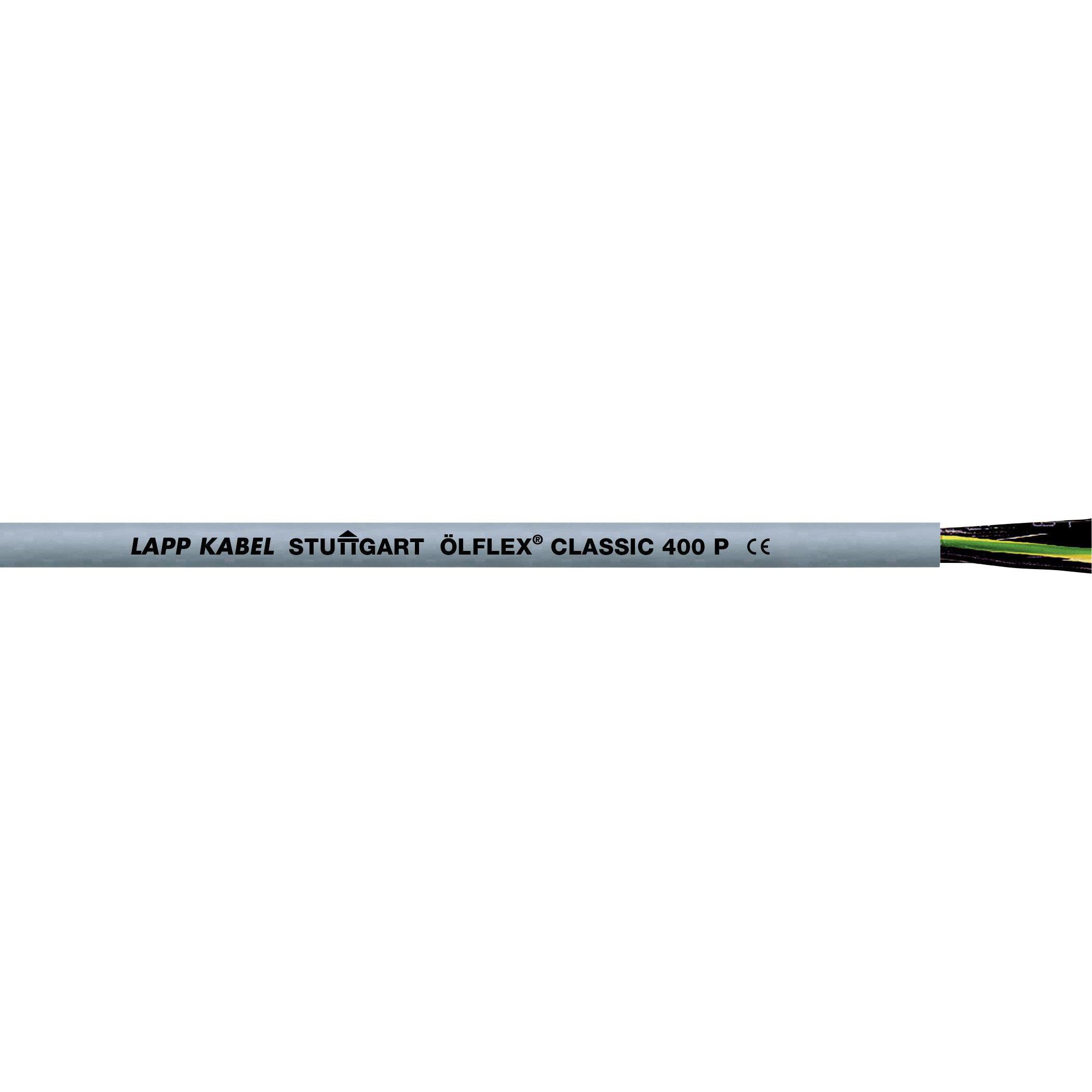

Lapp 1312107-1

Bend radius (no. of ODs for flexible installation)

12

Bend radius (no. of ODs for fixed installation)

4

Cable Types

ÖLFLEX® CLASSIC 400 P 2X1

Content

每米售价

Cross section

7 x 0.75mm²

Factory colour

Grey

Cross section (each core)

0.75mm²

Suited for cable carriers

无

Halogen-free

无

Insulation Materials

Polyurethane

Cable features

PUR coating,Oil-resistant

Manufacturer part #

1312107-1

Nominal voltage

500V

Outside Ø

7.30mm

Max. length sold by the metre

300m

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+85°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-5°C

Number-coded

有

No. of leads

7G

Package

无

Core layout

Finely stranded according to VDE 0295, Class 5 / IEC 228 Class 5

Nominal voltage (details)

300/500V

Certification marks

In accordance with: VDE Reg. No. 7030, sheath according to VDE 0250/0282.

RoHS-compliant

有

Wire ID code

Black wires with white number printing (VDE 0293)

Sold per metre

有

类型

ÖLFLEX® CLASSIC 400 P 2X1

Temperature range

Moving: -5 - +70 °C, when fixed : -40 - +80°C

Bend radius

For flexible use: 12.5 x external dia. when laid fixed: 4 x external dia.
