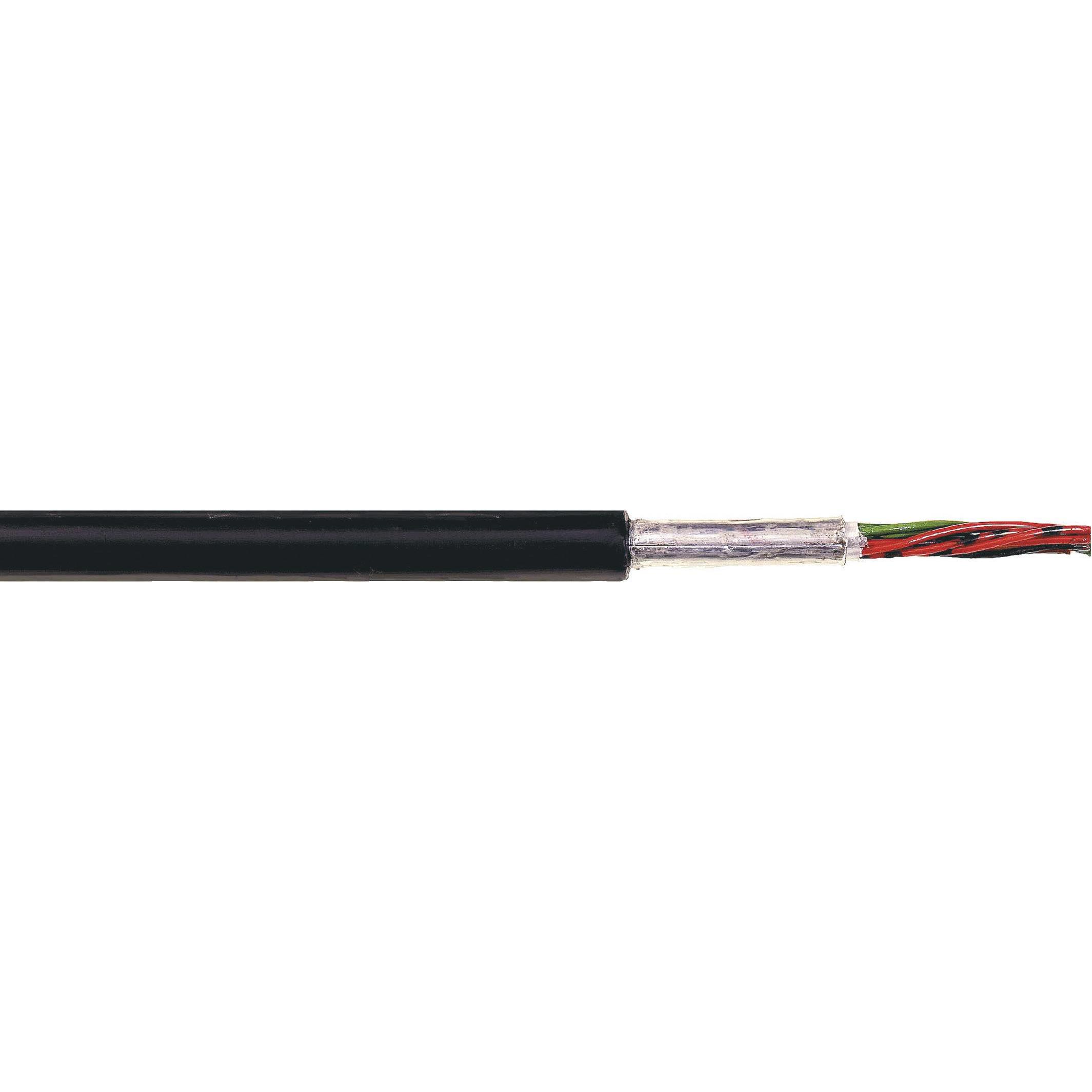

Lapp 1591150-1

Cable Types

A-2Y(L)2Y

No. of leads

4x

Cross section (each core)

0.50mm²

Cross section

2 x 2 x 0.8mm

Cable features

Shielded,UV-resistant

Outside Ø

12.50mm

Factory colour

Black

Content

每米售价

Nominal voltage

225V

Bend radius (no. of ODs for fixed installation)

10

Package

无

Sold per metre

有

Halogen-free

无

Manufacturer part #

1591150-1

Insulation Materials

Polyethylene (PE)

Min. temperature range (fixed installation)

-20°C

Max. temperature range (fixed installation)

+50°C

Core layout

纯铜

RoHS-compliant

有

Certification marks

In Anlehnung an VDE 0816

Twisted pair cabling (part 1)

Yes (1)

Max. length sold by the metre

500m

Nominal voltage (details)

(not for heavy current applications) 225V

类型

A-2Y(L)2Y

屏蔽的

有

Temperature range

When permanently installed: -20 - +50°C

标准

Telephone outdoor cables A-2Y (L) 2Y

Bend radius

10 x external dia.
