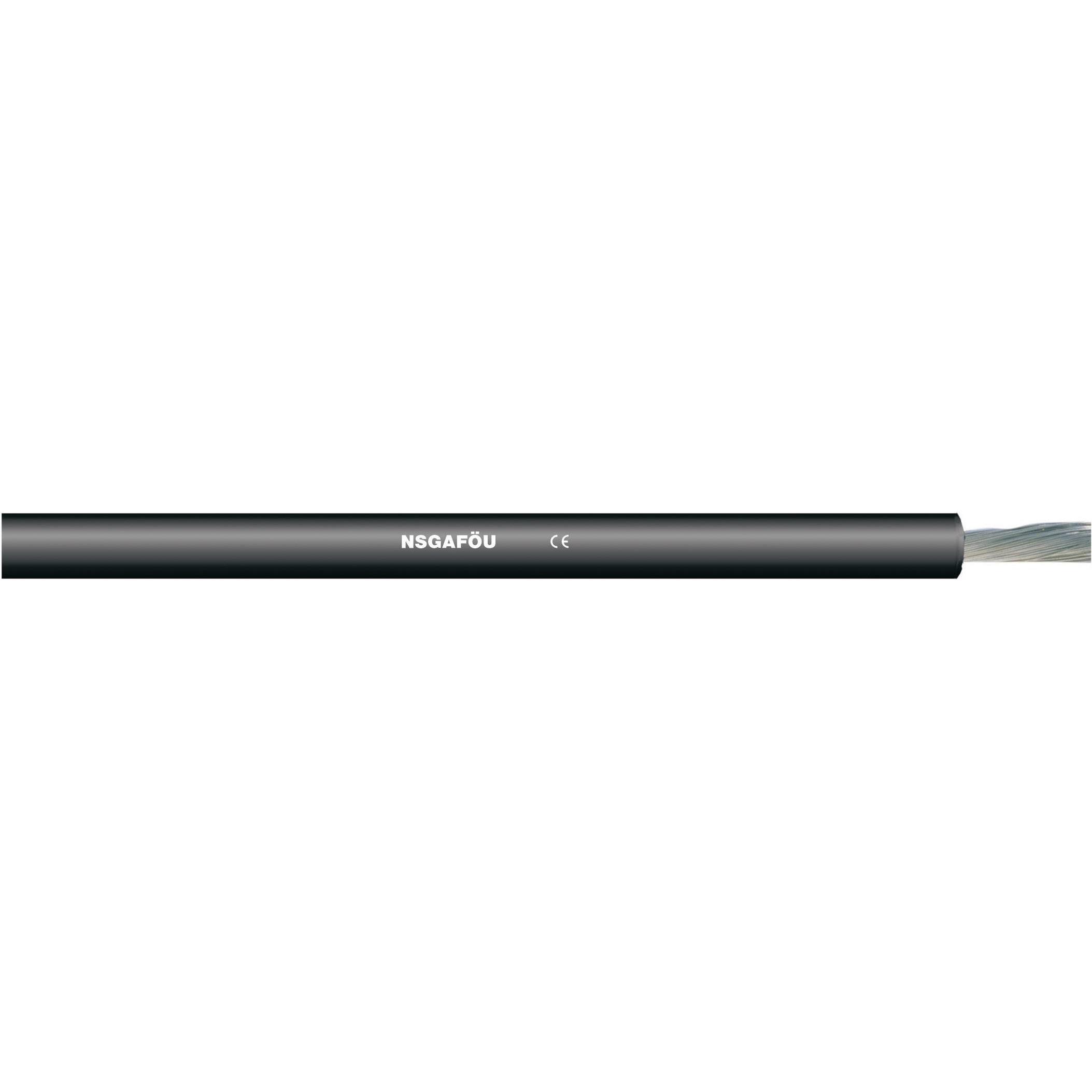

Lapp 1600304-1

Nominal voltage (details)

U₀/U: 1800/3000V

Max. length sold by the metre

300m

Material (details)

Compound 5GM3

Certification marks

VDE 0250, part 602.

Max. temperature range (fixed installation)

+90°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+90°C

Min. temperature range (flexible installation)

-25°C

RoHS-compliant

有

Insulation Materials

Rubber

Manufacturer part #

1600304-1

Halogen-free

无

Sold per metre

有

Package

无

Core layout

Finely stranded according to VDE 0295, Class 5 / IEC 60228 Class5

Bend radius (no. of ODs for flexible installation)

10

Bend radius (no. of ODs for fixed installation)

6

Nominal voltage U0

1800V

Nominal voltage

3000V

Content

每米售价

Outside Ø

<br> <ca/> 9mm

Factory colour

Black

Cable features

Flame-retardant,Oil-resistant

Cross section

1 x 10mm²

Cross section (each core)

10mm²

No. of leads

1x

Cable Types

NSGAFÖU

类型

NSGAFÖU

屏蔽的

无

Temperature range

Move: -25 - +90 °C, when fixed : -40 - +90°C

Bend radius

10 x external dia. for wide range of applications, 6 x external dia. when permanently installed

Test voltage

6000V
