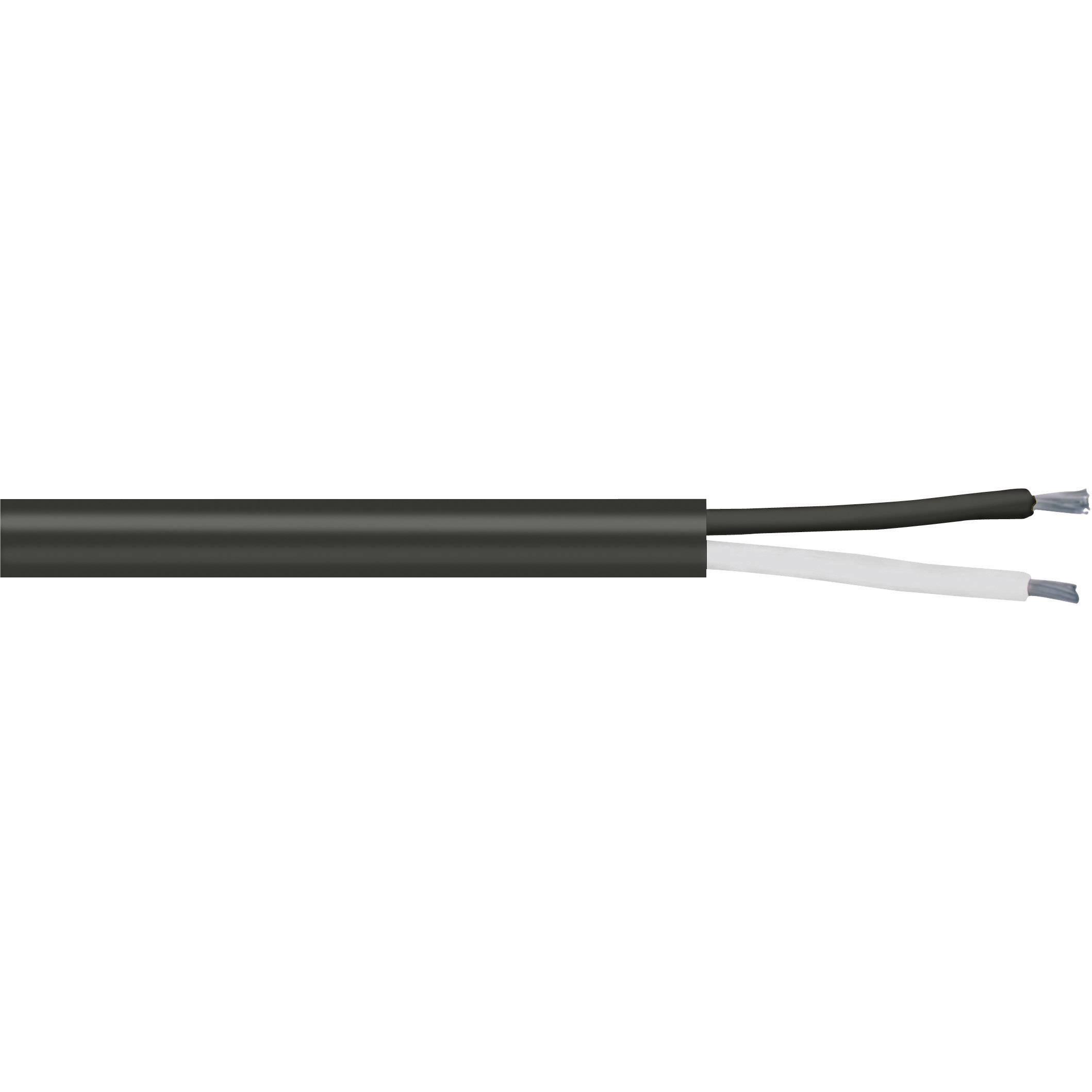

Lapp 162052-1

Bend radius (no. of ODs for fixed installation)

12

Content

每米售价

Cross section

2 x 0.22mm²

Factory colour

Green,Red

Cross section (each core)

0.22mm²

Halogen-free

无

Insulation Materials

PVC

Manufacturer part #

162052-1

Material (details)

Nickel - Chrome -Nickel

Outside Ø

5.10mm

Max. length sold by the metre

300m

No. of leads

2x

Package

无

Core layout

7 x 0.20 mm

Cable Types

NI-CR/NI type K 2x0.22 PVC-PVC-C-PVC

Certification marks

Referring to: boundry deviation according to DIN 42714 of class 2

RoHS-compliant

有

Sold per metre

有

类型

NI-CR/NI type K 2x0.22 PVC-PVC-C-PVC

Temperature range

-5 - +70°C

Bend radius

(without metal braiding) 12 x wire -Ø<br>(with metal braiding) 15 x wire-Ø
