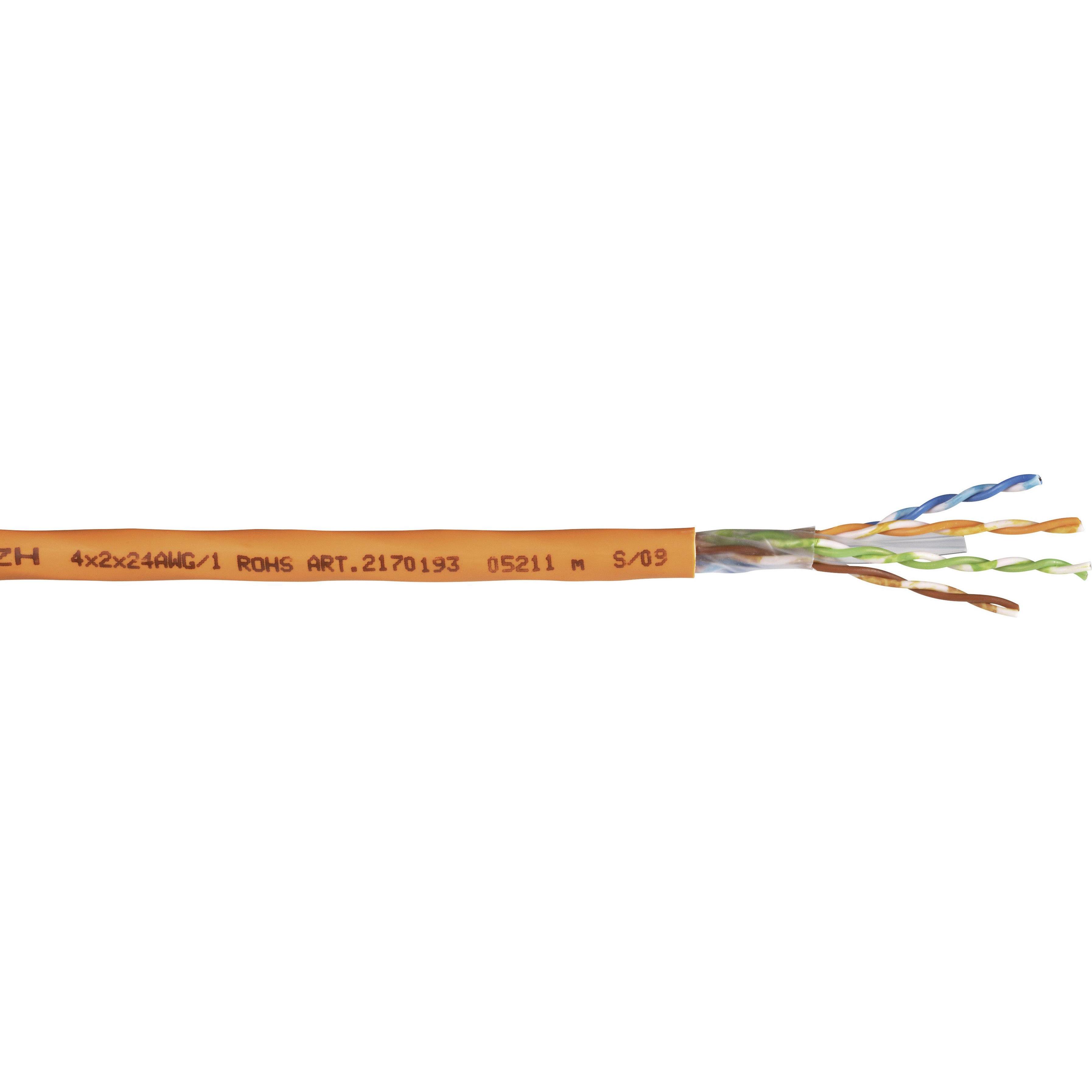

Lapp 2170186

Specification

CAT 6

No. of leads

8x

Cross section (each core)

0.20mm²

Cross section

4 x 2 x 0.20 mm²

Cable features

Halogen-free,Unshielded,rigid core

Outside Ø

6.50mm

Factory colour

Ivory

Content

100m

AWG max.

24

Package

有

Sold per metre

无

Manufacturer part #

2170186

Min. temperature range (flexible installation)

0°C

Max. temperature range (flexible installation)

+50°C

Min. temperature range (fixed installation)

-20°C

Max. temperature range (fixed installation)

+60°C

Twisted pair cabling (part 1)

Yes (1)

Diameter conductor

0.25

Conductor category

Class 1 = solid

Stranding element

Pairs

Core identification

Colour

Screen over stranding element

None

Screen over stranding

None

Material outer sheath

Polyvinyl chloride (PVC)

Colour outer sheath

Grey

Halogen free according to IEC 60754-2

无

Flame retardant

According to IEC/EN 60332-1-2

Low smoke according to IEC 61034-2

无

Outer diameter approx.

6.5

Permitted cable outer temperature during assembling/handling

-20 - 60

Permitted cable outer temperature after assembling without vibration

0 - 50

Category

6

NVP value

67

类型

UNITRONIC LAN 250 U/UTP Cat.6

屏蔽/屏蔽

U/UTP

Number of cores

8
