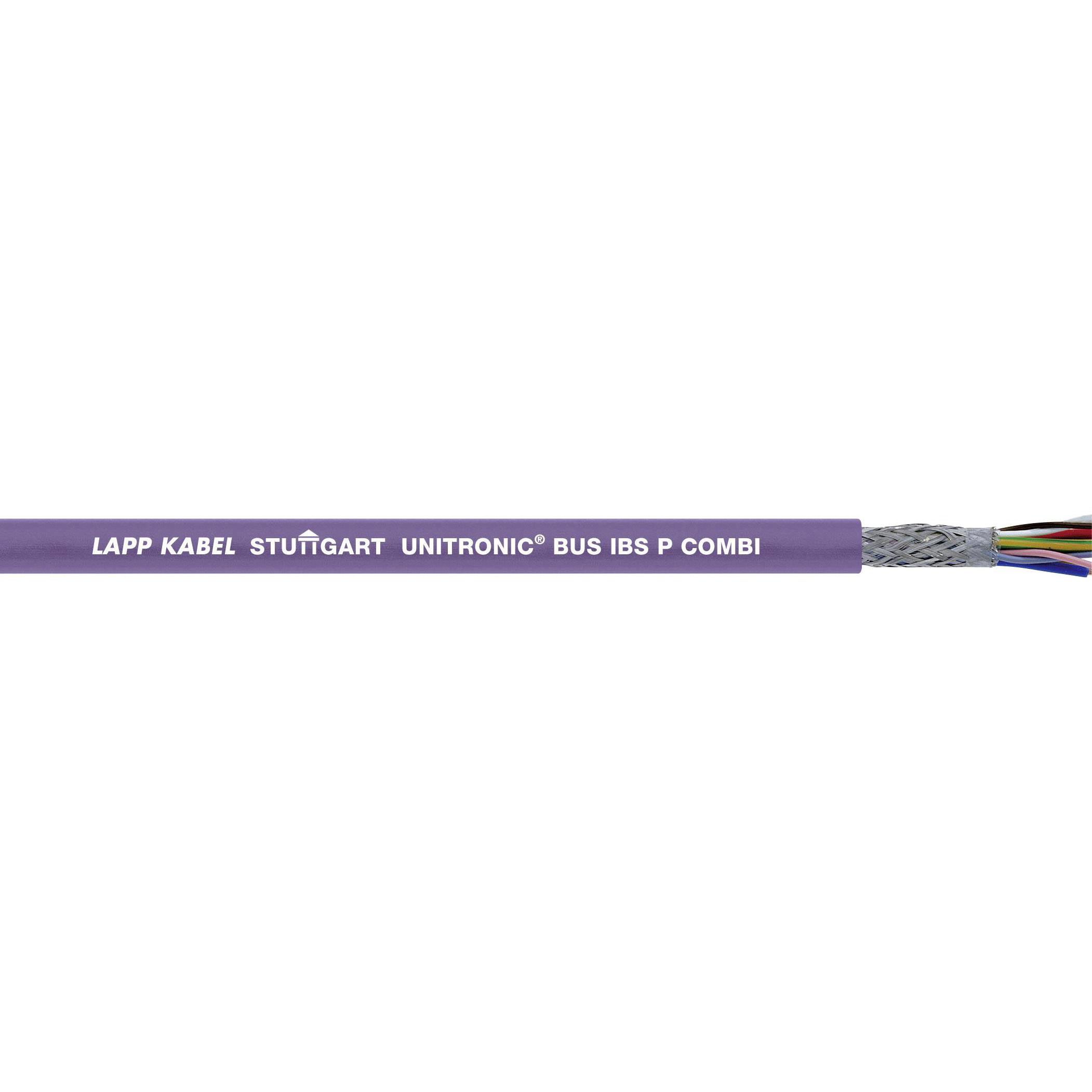

Lapp 2170208-1

Cable Types

公交车 P COMBI IBS

No. of leads

6x

Cross section (each core)

0.22mm²

No. of leads (part 2)

3x

Cross section (each core) (part 2)

1.0mm²

Cross section

3 x 2 x 0.22 + 3 x 1.0mm²

Cable features

Halogen-free,Flame-retardant,PUR coating

Outside Ø

7.90mm

Factory colour

Violet

Content

每米售价

Nominal voltage

250V

Bend radius (no. of ODs for fixed installation)

8

Package

无

Sold per metre

有

Halogen-free

有

Manufacturer part #

2170208-1

Insulation Materials

Polyurethane

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+80°C

Min. temperature range (flexible installation)

-40°C

Max. temperature range (flexible installation)

+80°C

Core resistance

Schleife: max. 186Ω/km

Operating capacity

(800Hz) max. 60nF/km

Certification marks

DIN 19258 · EN 50254 · IEC 61158

RoHS-compliant

有

Wave impedance

100Ω

Twisted pair cabling (part 1)

Yes (1)

Max. length sold by the metre

100m

Peak operating voltage

(not for heavy current applications) 250V

类型

公交车 P COMBI IBS

绝缘材料

PUR

屏蔽的

有

Temperature range

-40 - +80°C

标准

InterBus

Bend radius

8 x external dia., when permanently installed

Test voltage

Ader/Ader 1500V
