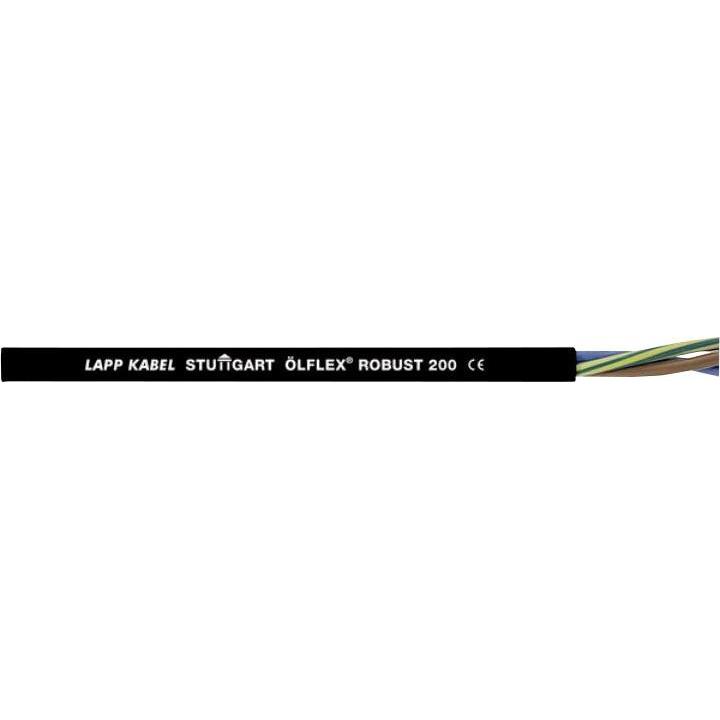

Lapp 21805-500

Bend radius (no. of ODs for flexible installation)

10

Bend radius (no. of ODs for fixed installation)

4

Cable Types

ÖLFLEX® ROBUST 200

Content

500m

Cross section

2 x 1.50 mm²

Factory colour

Black

Cross section (each core)

1.50mm²

Halogen-free

有

Insulation Materials

Elastomer

Cable features

Halogen-free,TPE coating,Cold-resistant,UV-resistant

Manufacturer part #

21805-500

Nominal voltage

750V

Outside Ø

8.60mm

Nominal voltage U0

450V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-50°C

Max. temperature range (flexible installation)

+80°C

Min. temperature range (flexible installation)

-40°C

No. of leads

2x

Package

有

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Certification marks

In accordance with: HD 22.10 (VDE 0282 part 10)

Wire ID code

Up to 5 wires: colored to VDE 0293-308, from 6 wires black wires with white number printing

Sold per metre

无

类型

ÖLFLEX ROBUST 200 2X1,5

绝缘材料

特种TPE

Test voltage

4000V
