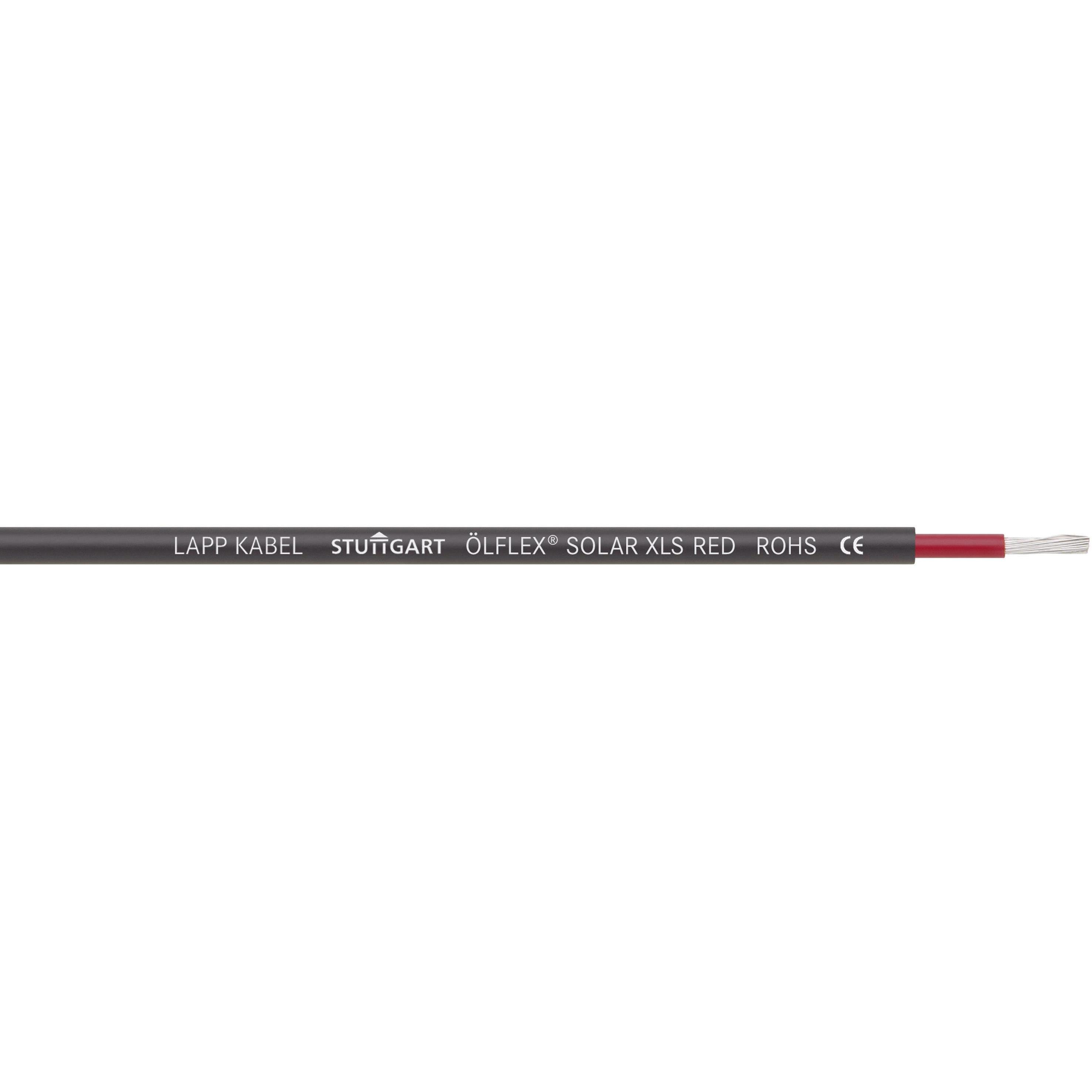

Lapp 23137-1

Cable Types

ÖLFLEX® SOLAR XLS

No. of leads

1x

Cross section (each core)

4mm²

Cross section

1 x 4mm²

Cable features

Halogen-free,Flame-retardant,UV-resistant

Outside Ø

5.20mm

Factory colour

Black,White

Content

每米售价

Nominal voltage

1000V

Nominal voltage U0

600V

Insulation Materials

Copolymer

Bend radius (no. of ODs for fixed installation)

5

Bend radius (no. of ODs for flexible installation)

15

Package

无

Sold per metre

有

Halogen-free

有

Manufacturer part #

23137-1

Core layout

Fine-wired strands made of tin-plated Cu-wires, according to IEC 60228, class 5

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+100°C

RoHS-compliant

有

Material (details)

Outer sheath: Flame-resistant and halogen-free CO-polymer, cross-linked

Max. length sold by the metre

500m

Nominal voltage (details)

100 V/AC - 1500V DC

类型

ÖLFLEX® SOLAR XLS-R

绝缘材料

Temperature-resistant and halogen-free CO-polyolefin, cross-linked

屏蔽的

无

Temperature range

-40 - +100°C

Bend radius

When fixed: 4 x external dia.

Test voltage

4 kV AC
