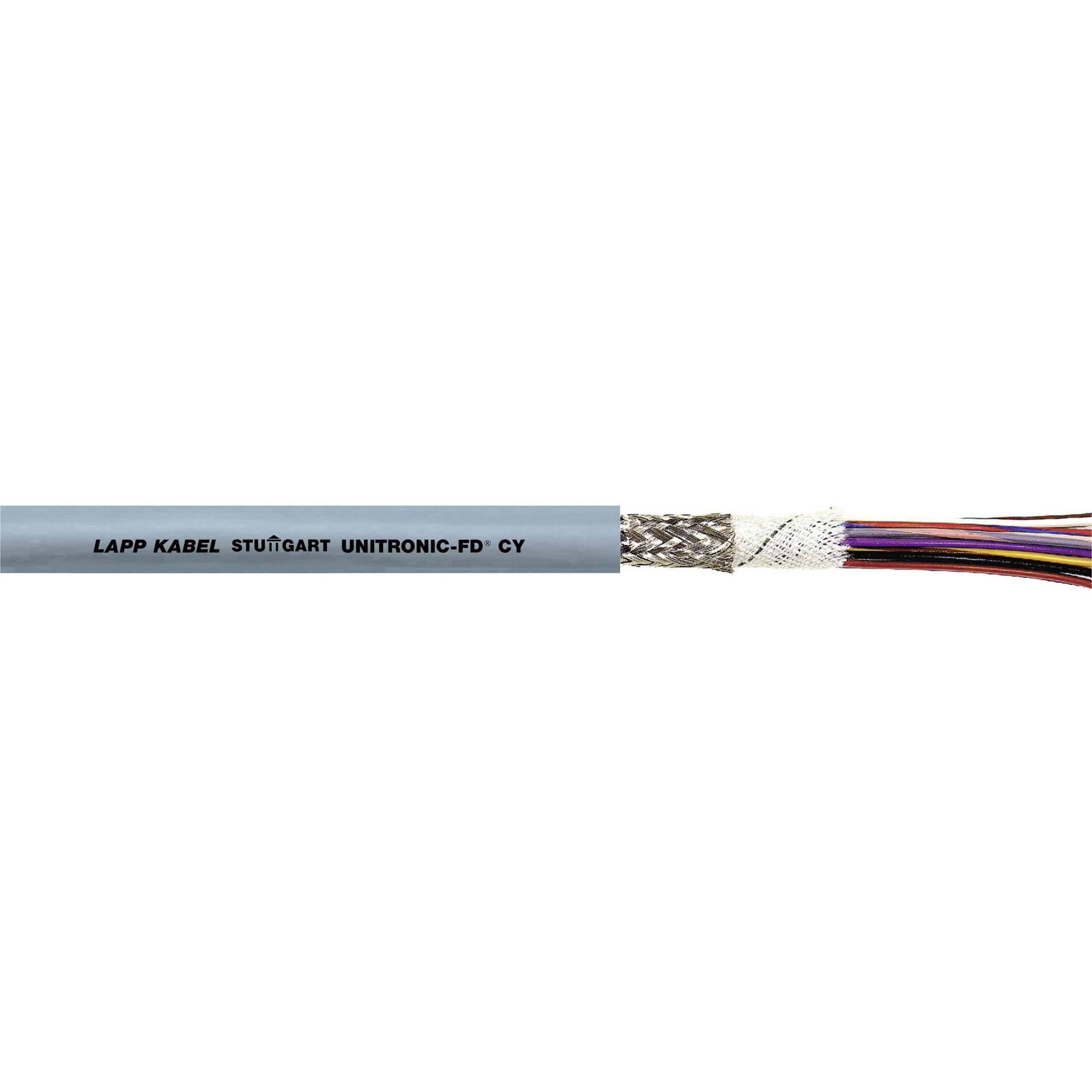

Lapp 27412-500

Cable Types

UNITRONIC® FD CY

No. of leads

4x

Cross section (each core)

0.14mm²

Cross section

4 x 0.14 mm²

Cable features

Shielded,Flame-retardant,Suitable for drag chains

Outside Ø

4.80mm

Factory colour

Grey

Content

500m

Bend radius (no. of ODs for fixed installation)

4

Bend radius (no. of ODs for flexible installation)

7.5

Package

无

Sold per metre

有

Halogen-free

无

Manufacturer part #

27412-500

Insulation Materials

PVC

Wire ID code

DIN 47100

Core layout

Bare stranded conductor, extra-fine strand to VDE 0295,

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+80°C

Certification marks

Flame-resistant according to IEC 60332-1-2

类型

UNITRONIC FD CY 4x0,14

屏蔽的

有

Test voltage

1500V
