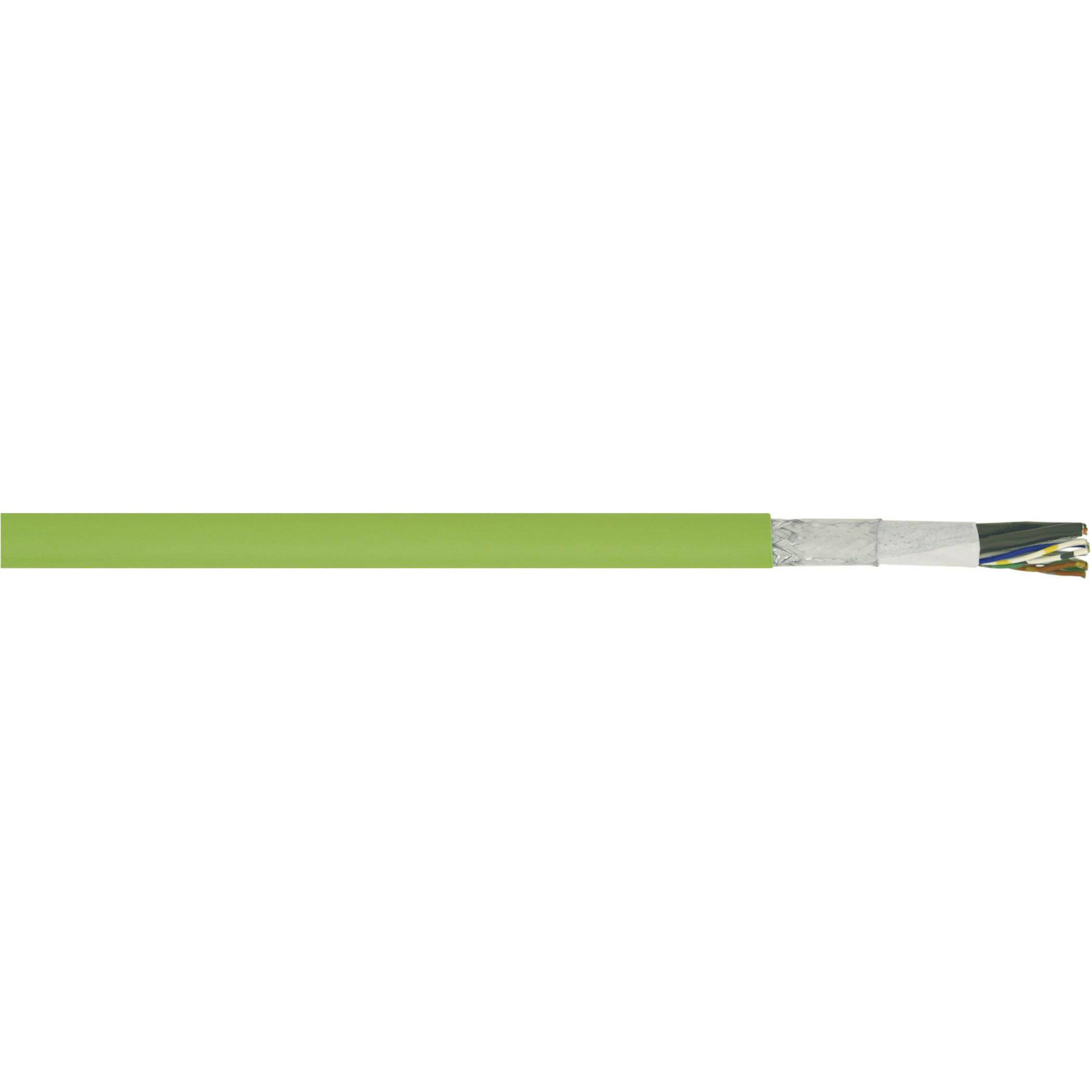

Lapp 277111-1

Bend radius (no. of ODs for flexible installation)

10

Bend radius (no. of ODs for fixed installation)

7

Cable Types

6FX8008-1BD21

Content

每米售价

Cross section

8 x 0.38 mm² + 4 x 0.50 mm²

Factory colour

Green

Cross section (each core)

0.38mm²

Cross section (each core) (part 2)

0.50mm²

Suited for cable carriers

有

Halogen-free

有

Insulation Materials

Polyurethane

Cable features

Shielded,Halogen-free,highly flexible,PUR coating

Manufacturer part #

277111-1

Nominal voltage

1000V

Outside Ø

8.90mm

Max. length sold by the metre

200m

Nominal voltage U0

600V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-50°C

Max. temperature range (flexible installation)

+60°C

Min. temperature range (flexible installation)

-10°C

No. of leads

8x

No. of leads (part 2)

4x

Package

无

Certification marks

<br> <b>Power line: VDE-Reg.</b> No.: 7733 UL/CSA AWM style 20234. · <b>Generator lines:</b> UL/CSA AWM Style 20236

RoHS-compliant

有

Sold per metre

有

类型

SIEMENS-Art. No.: 6FX8008-1BD21

Temperature range

Moving: -10 ºC to +60 ºC · When fixed -50 to +80 ºC°C

Bend radius

Fixed laid: 7.5 x outer-Ø · For flexible use: 1.5 mm2 - 4.0 mm2 · 10 x external dia., · 4.0 mm2 12 x external-Ø.
