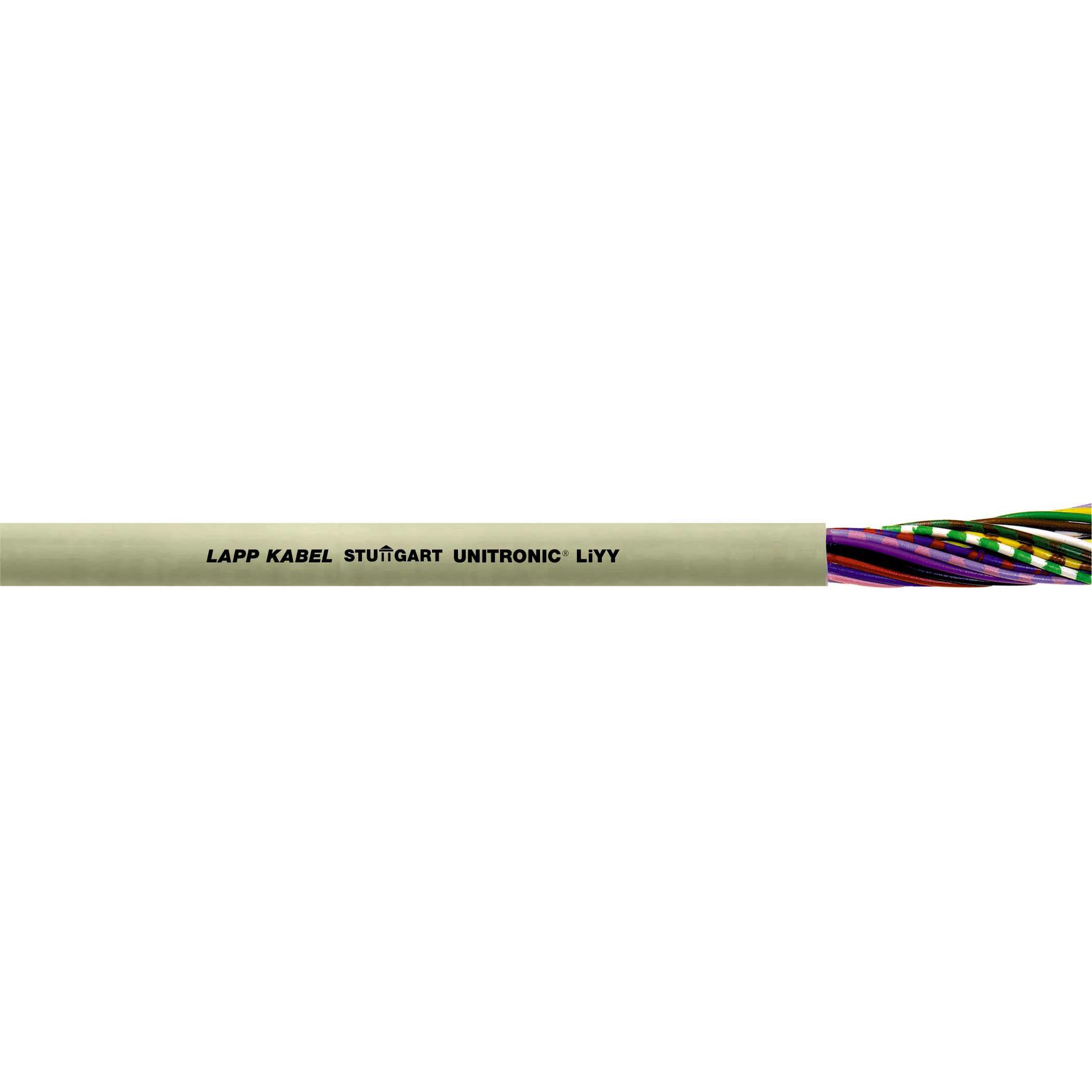

Lapp 28510-100

Cable Types

UNITRONIC® LiYY

No. of leads

10x

Cross section (each core)

0.50mm²

Cross section

10 x 0.50 mm²

Cable features

Flame-retardant

Outside Ø

8.60mm

Factory colour

Grey

Content

100m

Nominal voltage (details)

50V

Bend radius (no. of ODs for fixed installation)

4

Bend radius (no. of ODs for flexible installation)

10

Package

有

Sold per metre

无

Halogen-free

无

Manufacturer part #

28510-100

Insulation Materials

PVC

Wire ID code

DIN 47100

Core layout

精细绞合

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+80°C

Certification marks

According to VDE 0812

类型

UNITRONIC LIYY 10X0,5
