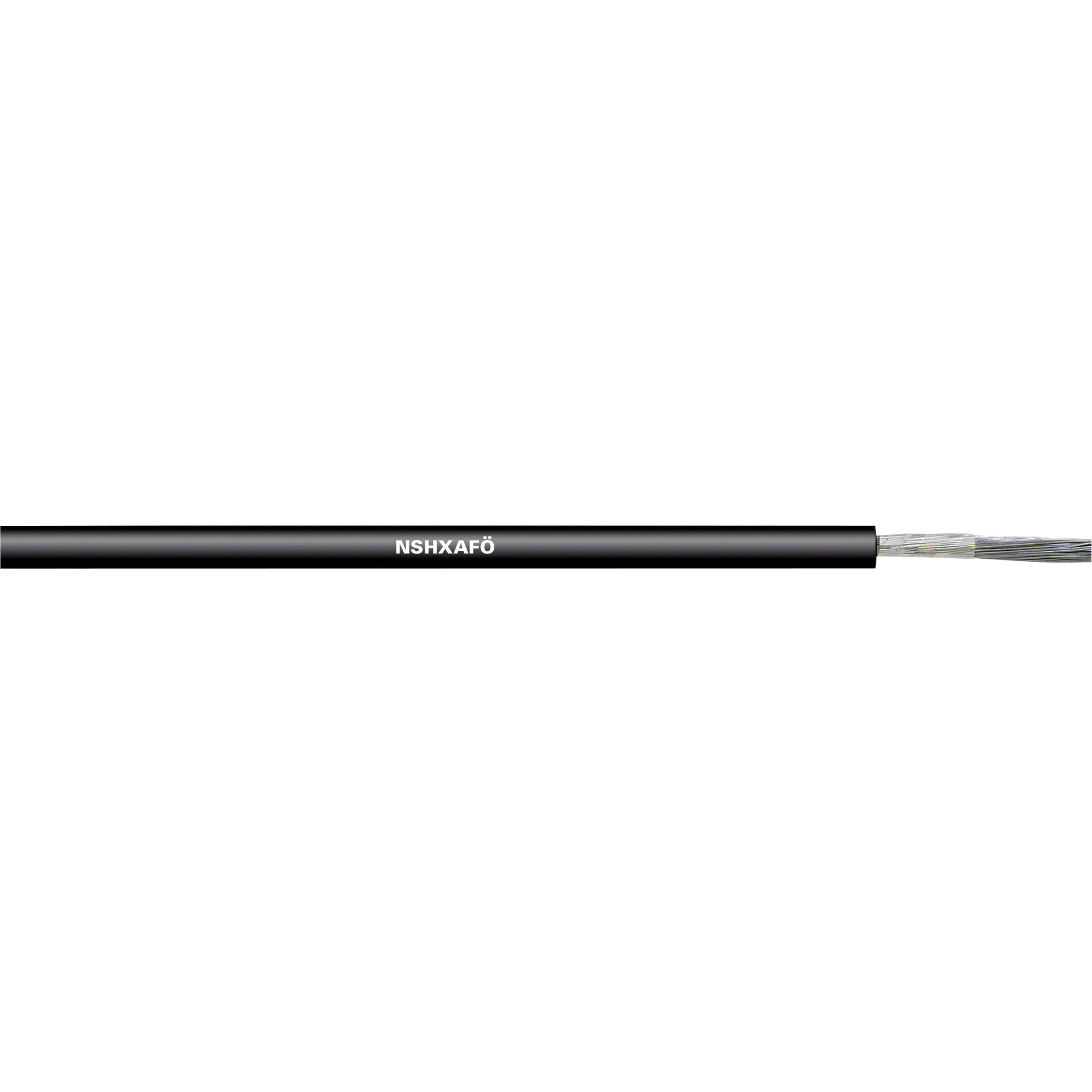

Lapp 3022680/100

Cable Types

NSHXAFÖ 1.8/3 kV

No. of leads

1x

Cross section (each core)

35mm²

Cross section

1 x 35 mm²

Cable features

Halogen-free

Factory colour

Black

Outside Ø

16.50mm

Content

100m

Nominal voltage

3000V

Nominal voltage U0

1800V

Bend radius (no. of ODs for fixed installation)

6

Bend radius (no. of ODs for flexible installation)

10

Core layout

Copper fine-stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Package

有

Sold per metre

无

Halogen-free

有

Manufacturer part #

3022680/100

Insulation Materials

Polymer

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+90°C

Min. temperature range (fixed installation)

-25°C

Max. temperature range (fixed installation)

+90°C

类型

3022680/100

屏蔽的

无

Test voltage

6000V
