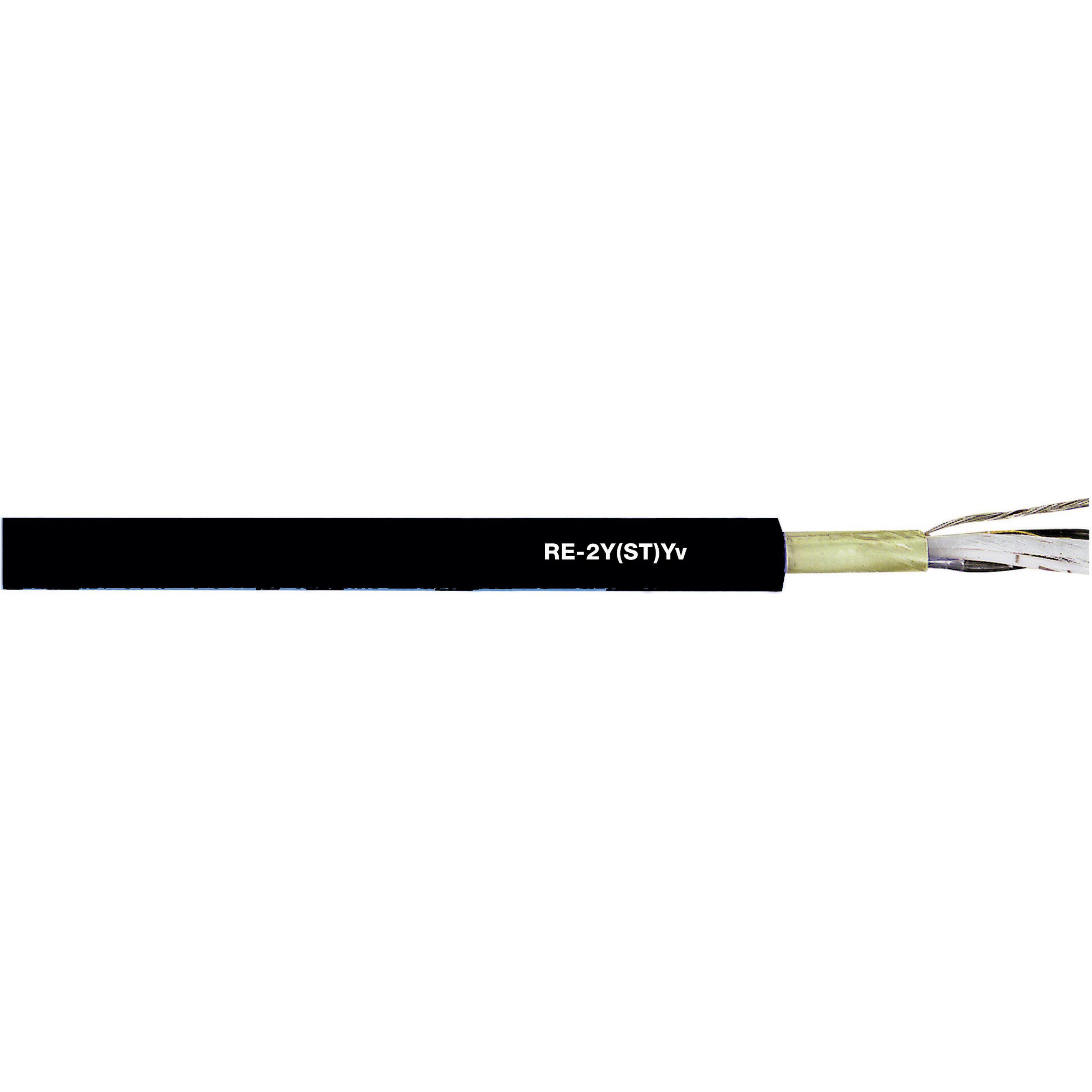

Lapp 32431-1

Cable Types

RE-2Y(ST)Yv

No. of leads

4x

Cross section (each core)

1.30mm²

Twisted pair cabling (part 1)

Yes (1)

Cross section

2 x 2 x 1.30 mm²

Cable features

Shielded,Flame-retardant

Outside Ø

11.70mm

Factory colour

Black

Content

每米售价

Bend radius (no. of ODs for fixed installation)

7.5

Bend radius (no. of ODs for flexible installation)

15

Package

无

Sold per metre

有

Halogen-free

无

Manufacturer part #

32431-1

Insulation Materials

PVC

RoHS-compliant

有

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+50°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+80°C

Max. length sold by the metre

500m

Peak operating voltage

(Not for heavy current applications): max 300V

类型

RE-2Y(ST)Yv

屏蔽的

有

Test voltage

A/A 2000 V · A/S: 1000V
