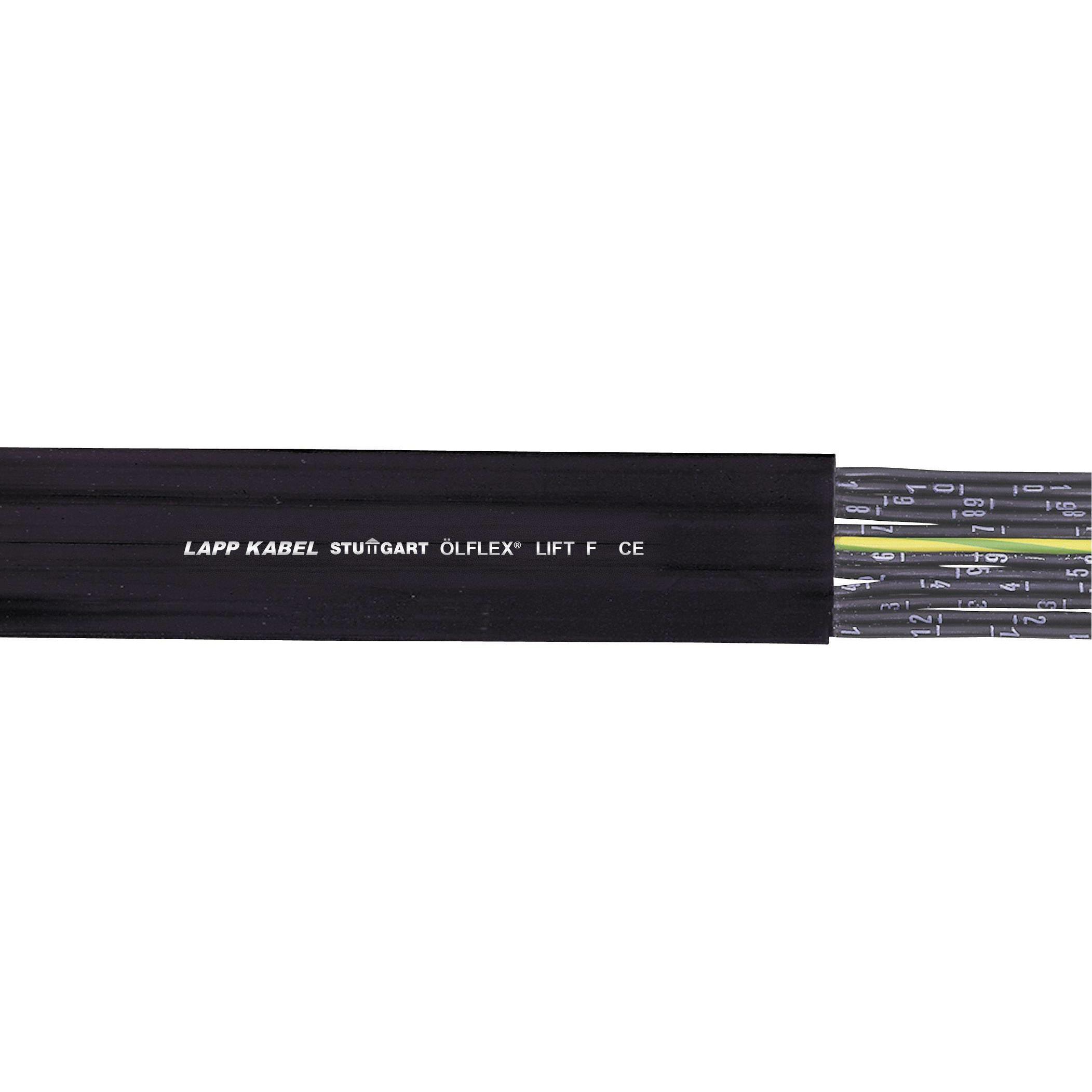

Lapp 42006-1

Bend radius (no. of ODs for flexible installation)

10

Cable Types

升降机 F

Content

每米售价

Cross section

12 x 1.5mm²

Factory colour

Black

Cross section (each core)

1.50mm²

Halogen-free

无

Cable features

Flat

Manufacturer part #

42006-1

Nominal voltage

750V

Max. length sold by the metre

100m

Nominal voltage U0

450V

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-15°C

Number-coded

有

No. of leads

12G

Package

无

Core layout

According to VDE 0295, class 6 / IEC 60228 class 6

Nominal voltage (details)

450/750V

RoHS-compliant

有

Wire ID code

Up to 5 wires: coloured to VDE 0293 or VDE 0293-308, from 6 wires black with white numbers

Sold per metre

有

类型

ÖLFLEX® Flat F 12G1,5

Temperature range

Moving till 1 mm²: 0 - +75 °C, moving from 1.5 mm²: -15 - +70°C

Bend radius

For flexible use: 10 x line thickness

高度

5.2mm
