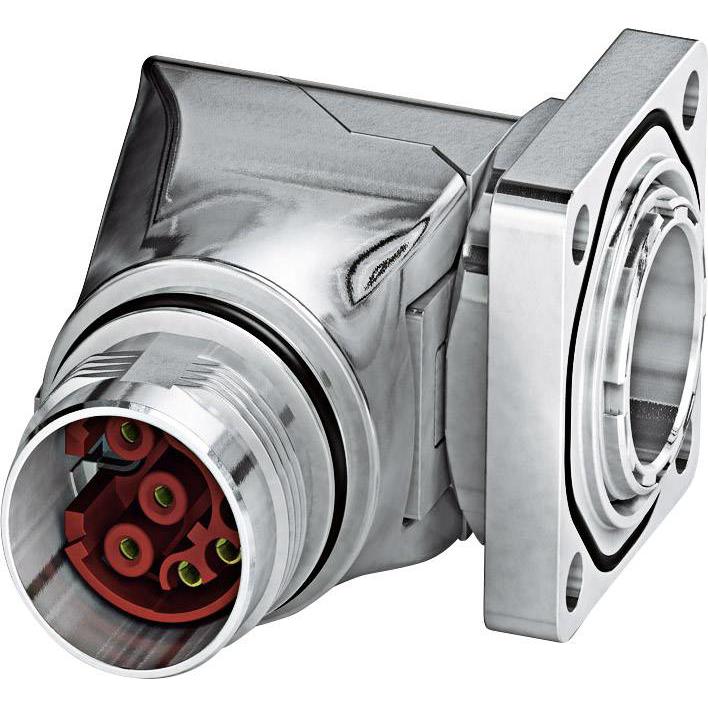

Lapp 44423112

Mounting type

Structure

Number of pins

7

Contact Materials

黄铜镀金

Case material

压铸锌

Rated current In

3.6

Ambient temperature

-40 - 125

Pollution degree

3

Connectable conductor cross section fine-strand without cable end sleeve

0.06 - 1

Connectable conductor cross section fine-strand with cable end sleeve

0.06 - 1

Connectable conductor cross section solid-core

0.06 - 1

Connectable conductor cross section multi-wired

0.06 - 1

Type of electric connection

压接

Material of contact surface

Gold

Material housing

Zinc

Locking mechanism

压盖螺母

With protective conductor

无

Degree of protection (IP), mounted

IP67

Thread size M

17

Connector cross section

0.06 - 1mm²

Contamination level

3

Manufacturer part #

44423112

Connections

Crimp

Leading contact (PE)

有

Industrial packaging

有

Factory colour

Silver

Total no. of pins

7 + PE

Content

5pc(s)

Manufacturer Part Number

44423112

Manufacturer

Lapp Group

Part Life Cycle Code

活跃

Ihs Manufacturer

LAPP GROUP PVT LTD

Risk Rank

5.74

Connector type

Plug, right angle

类型

44423112

Contact type

Pin

Reach合规守则

unknown

Test current

3.60A

Temperature range

-40 °C - +125°C

Rated voltage

60V

IP rating

IP67
