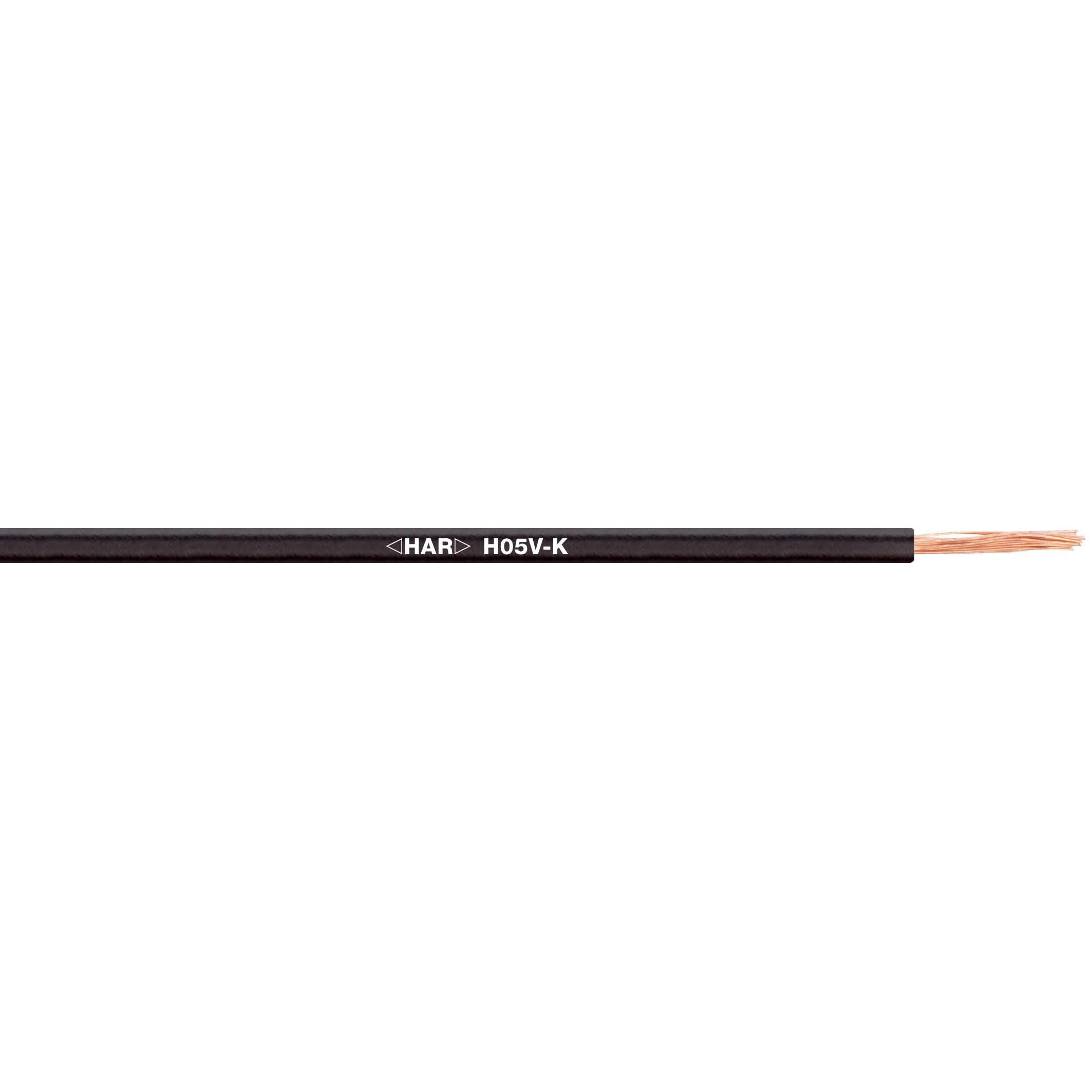

Lapp 4510162

Nominal voltage

500V

Cable Types

H05V-K

Content

100m

Cross section

1 x 0.75 mm²

Factory colour

Ultramarine blue

Cross section (each core)

0.75mm²

Halogen-free

无

Insulation Materials

PVC

Cable features

Flame-retardant,Flexible,Harmonised

Manufacturer part #

4510162

Material (details)

Bare copper, finely stranded Class 5

AWG max.

20

Outside Ø

2.40mm

Nominal voltage U0

300V

No. of leads

1x

Package

有

Core layout

Finely stranded according to VDE 0295<br>Class 5/IEC 60228 Class 5 5

Nominal voltage (details)

300/500V

Certification marks

VDE 0281/ HD 21

Current load capacity

Current capacity to VDE 0298 Part 4.

Sold per metre

无

类型

H05V-K

Temperature range

-30 - +80°C

Test voltage

2000V
