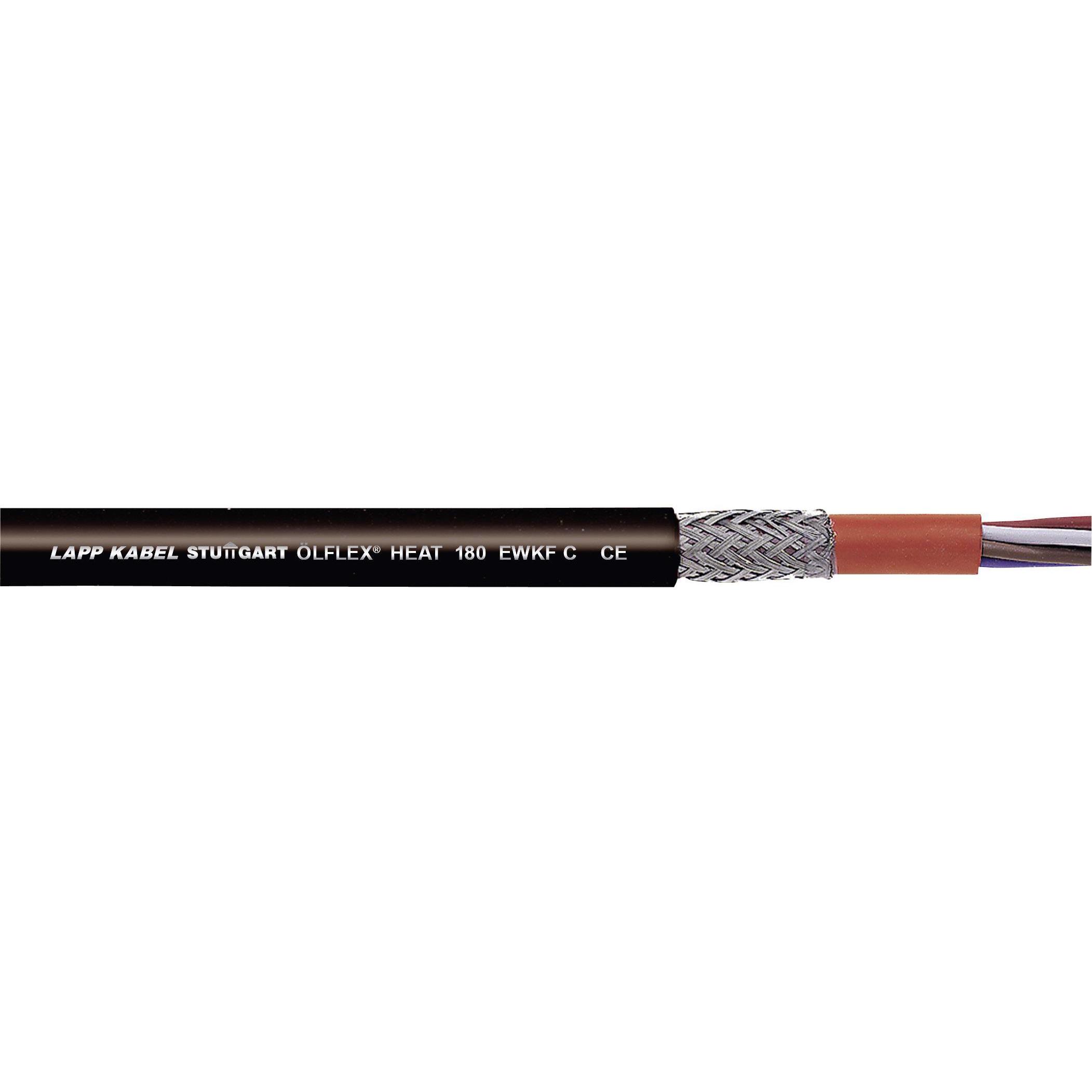

Lapp 46314-1

Bend radius (no. of ODs for flexible installation)

20

Bend radius (no. of ODs for fixed installation)

6

Cable Types

HEAT 180 EWKF C

Content

每米售价

Cross section

3 x 1.5 mmmm²

Factory colour

Black

Cross section (each core)

1.50mm²

Halogen-free

有

Insulation Materials

Silicone

Cable features

Halogen-free,Shielded,Flame-retardant,Oil-resistant,Heat-resistant

Manufacturer part #

46314-1

Material (details)

Sheath: EWKF Silicon-base

Nominal voltage

500V

Outside Ø

11.20mm

Max. length sold by the metre

300m

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+180°C

Min. temperature range (fixed installation)

-50°C

No. of leads

3G

Package

无

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Nominal voltage (details)

300/500V

RoHS-compliant

有

Wire ID code

Up to 5 wires: according to VDE 0293-308 (Annex T9) · From 6 wires black with white numbers

Sold per metre

有

类型

ÖLFLEX® HEAT 180 EWKF C 3G1.5

Temperature range

(provided proper ventilation) -50 - +180°C

Bend radius

For flexible Application: 20 x Outer-Ø, fixed installation: 6 x Outer-Ø

Test voltage

2000V
