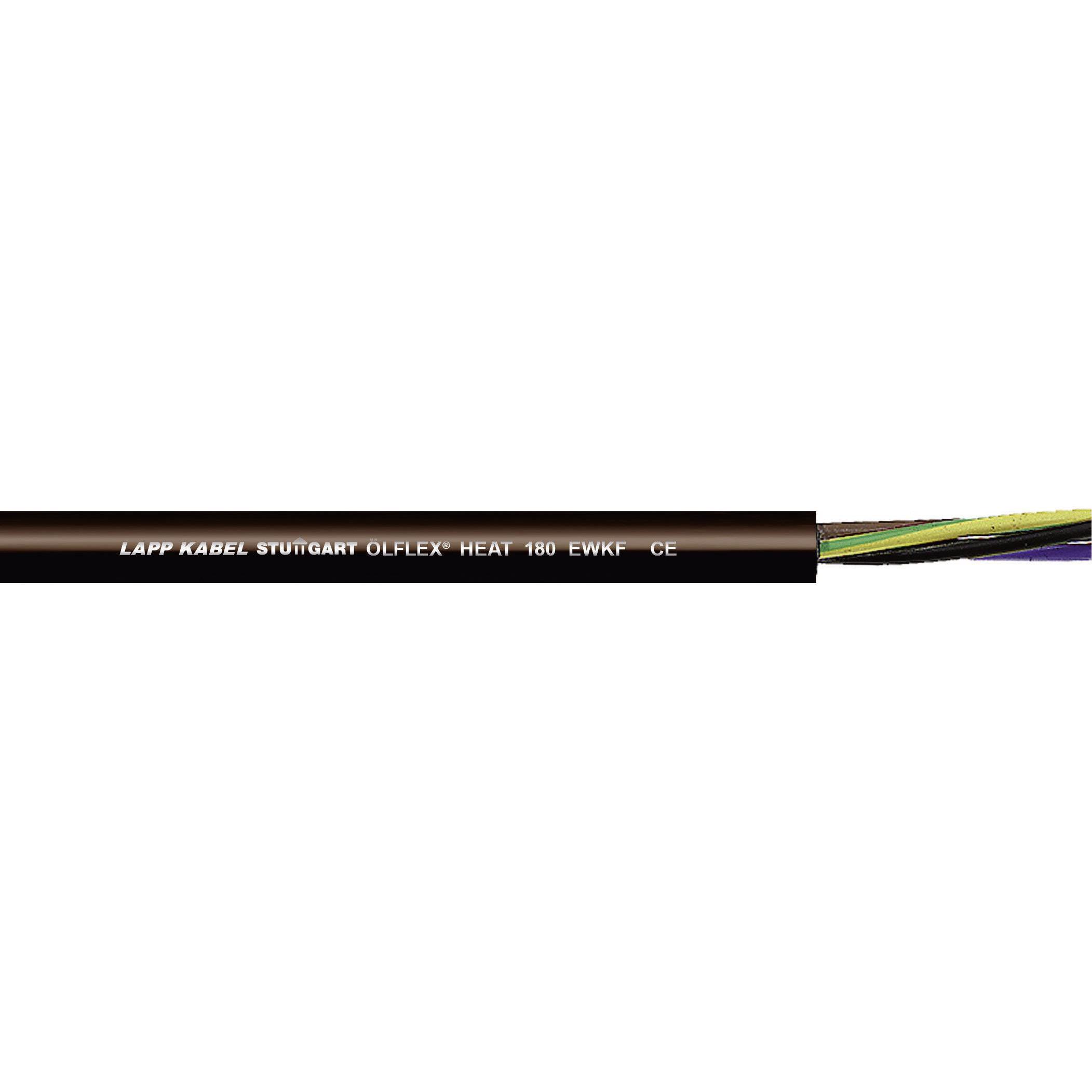

Lapp 46512-1

Sold per metre

有

RoHS-compliant

有

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Package

无

No. of leads

3x

Min. temperature range (fixed installation)

-50°C

Max. temperature range (fixed installation)

+180°C

Nominal voltage U0

300V

Max. length sold by the metre

300m

Outside Ø

8.50mm

Nominal voltage

500V

Material (details)

Sheath: notch-resistant to EWKF Silicon-base

Manufacturer part #

46512-1

Cable features

Halogen-free,Flame-retardant,Oil-resistant,Heat-resistant

Insulation Materials

Silicone

Halogen-free

有

Cross section (each core)

1.50mm²

Factory colour

Black

Cross section

3 x 1.50 mm²

Content

每米售价

Cable Types

ÖLFLEX® HEAT 180 EWKF

Bend radius (no. of ODs for fixed installation)

4

Bend radius (no. of ODs for flexible installation)

15

类型

ÖLFLEX® HEAT 180 EWKF

Test voltage

2000V
