Lapp 49900050

底架

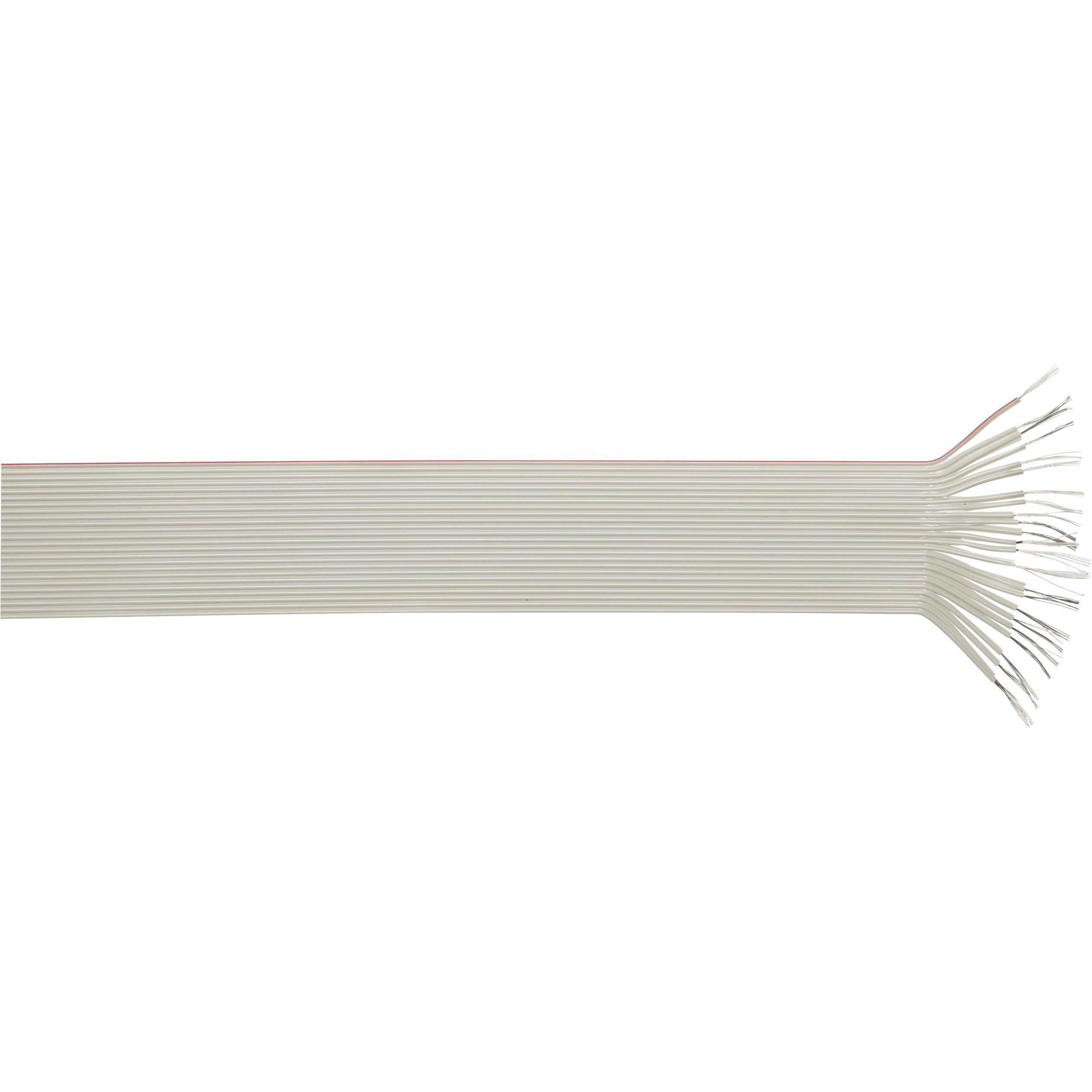

Cable

CS

1.27mm

No. of leads

34x

Cross section (each core)

0.09mm²

Cross section

34 x 0.09 mm²

Factory colour

Grey

Content

每米售价

Nominal voltage

300V

Package

无

AWG

28

Halogen-free

无

Sold per metre

有

Insulation Materials

PVC

Core layout

7 x 0.127mm

Min. temperature range (fixed installation)

-20°C

Max. temperature range (fixed installation)

+80°C

Manufacturer part #

49900050

Max. length sold by the metre

100m

RoHS-compliant

有

RoHS

Non-Compliant

类型

49900050

最小工作温度

-20 °C

颜色

Grey

屏蔽/屏蔽

Unshielded

无卤素

不含卤素

屏蔽的

无

宽度

43.18mm

高度

0.93mm
