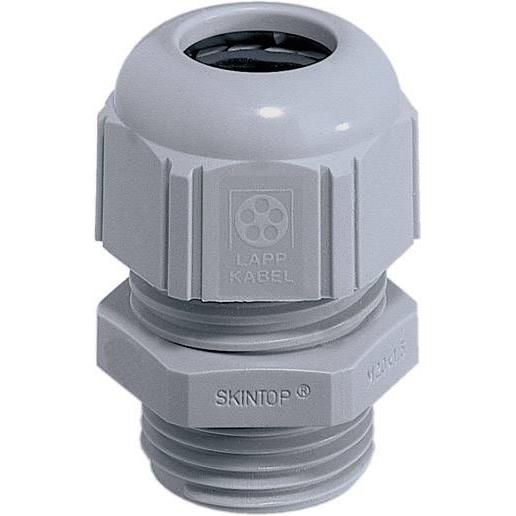

Lapp 53111140

材料

Polyamide

Factory colour

Silver-grey (RAL 7001)

External thread

M32

Clamp Ø

7mm

Terminal Ø (max.)

15mm

Thread length

10mm

Min. temperature

-20°C

Max. temperature

+100°C

Spanner size

36mm

Halogen-free

无

Content

1pc(s)

RoHS-compliant

有

Manufacturer part #

53111140

Material (details)

Polyamide

Clamping range diameter mm

7 - 15mm

Pitch thread

1.5

Surface protection

Untreated

Glass-fibre reinforced

无

Degree of protection (IP)

IP68

Explosion-tested version

无

Suitable for cable diameter

7 - 15

With locknut

无

Thread type

Metric

Nominal thread size metric/PG

32

Wrench width

36

Material quality

Polyamide (PA)

Bend radius protection/trumpet flare

无

Shock resistant

无

Model

Straight

类型

STR-M32

大小

M32

Temperature range

-20 - +100°C

IP rating

IP69K
