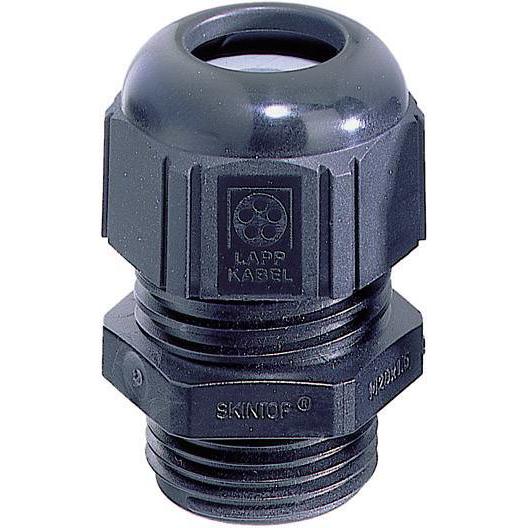

Lapp 53111330

底架

Cable

材料

Polyamide

Factory colour

Black (RAL 9005)

External thread

M25

Clamp Ø

6mm

Terminal Ø (max.)

13mm

Thread length

10mm

Min. temperature

-20°C

Max. temperature

+100°C

Spanner size

30mm

Halogen-free

无

Content

1pc(s)

RoHS-compliant

有

Manufacturer part #

53111330

Material (details)

Polyamide

Clamping range diameter mm

6 - 13mm

Pitch thread

1.5

Surface protection

Untreated

Glass-fibre reinforced

无

Degree of protection (IP)

IP68

Explosion-tested version

无

Suitable for cable diameter

9 - 17

With locknut

无

Thread type

Metric

Nominal thread size metric/PG

25

Wrench width

30

Material quality

Polyamide (PA)

Bend radius protection/trumpet flare

无

Shock resistant

无

Model

Straight

RoHS

Compliant

类型

STR-M25

最高工作温度

100 °C

最小工作温度

-20 °C

颜色

Black

无卤素

不含卤素

大小

M25

Temperature range

-20 - +100°C

IP rating

IP69K

长度

40 mm

评级结果

IP68, IP69K
